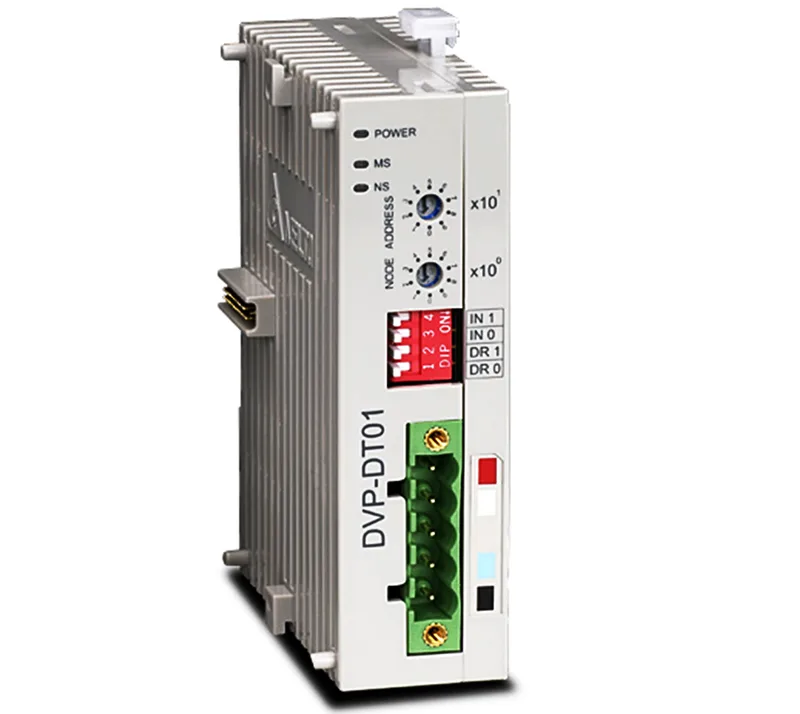

The Delta DVPDT01-S is a CANopen communication module for the DVP series PLC family. It handles explicit and I/O polled messaging over a CAN bus at selectable baudrates of 125k, 250k, or 500k bps, with a maximum of 500k bps. Network voltage is 24 VDC, with an operating range of 11 to 25 VDC, and electrical isolation rated at 500 VDC between the network and the PLC backplane.
Connector and wiring
The fieldbus connection uses a removable 5.08 mm pitch terminal block — spring-cage or screw, typical for this class. That pitch matches standard DIN-rail terminal blocks, so the wiring pattern stays consistent across the panel. The removable connector means you can pre-wire the cable harness and plug it in during commissioning without re-terminating.
