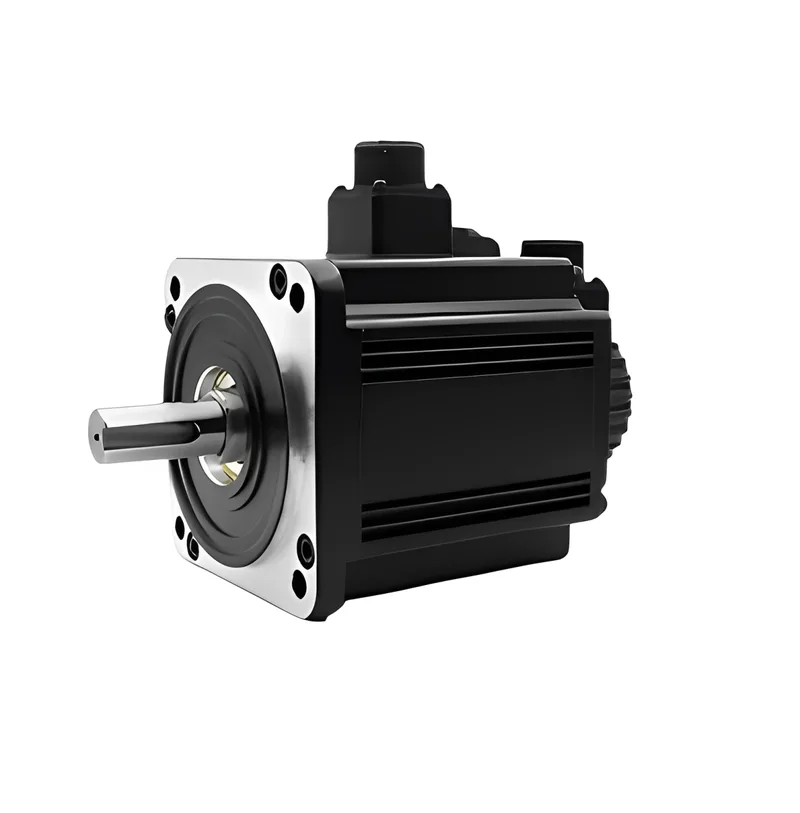

Delta ECM-B3M-E21315SS1 Servo Motor
MPNECM-B3M-E21315SS1
ECM-B3 Series Servo Motor
$619.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Feedback
| Parameter | Value |
|---|---|
| Encoder type | 2 = 24-bit incremental optical encoder |
Mechanical
| Parameter | Value |
|---|---|
| Shaft diameter | S = Standard connector and standard shaft diameter |
Other specifications
| Parameter | Value |
|---|---|
| Weight | 7.4 kg |
| Inertia | M = Medium inertia |
| Special code | 1 = Standard products |
| Product series | B3 = B3 series |
| Motor frame size | 13 = 130 mm |
| Rated power output | 15 = 1.5 kW |
| Rated voltage and speed | E = 220V / 2000 rpm |
| Type of shaft and oil seal | SKeyway (with fixed screw holes) | with Brake with Oil Seal |
MPN
ECM-B3M-E21315SS1
