Delta VFD015E43A — AC Drive (VFD) 480V

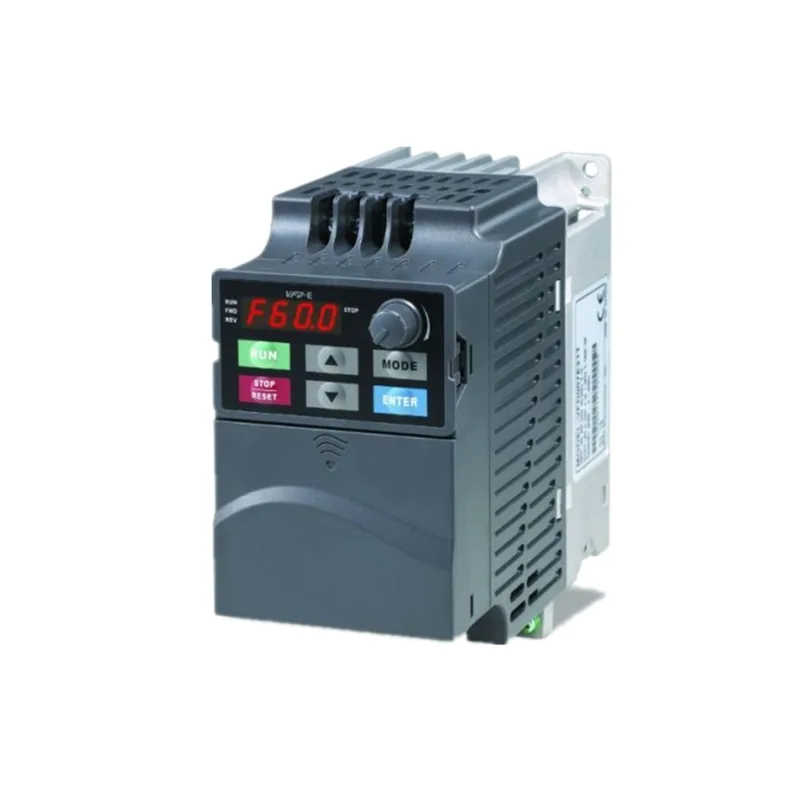

Delta VFD015E43A VFD-E Drive, 1.5 kW / 460 V 3-phase

MPNVFD015E43A

Delta VFD-E series variable frequency drive, 460 V three-phase input, 1.5 kW / 2 HP, natural cooling, standard version, VFD015E43A.

$314.00Ref. price · indicative, final on quote
Delta VFD015E43A datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

VFD015E43A — Specifications
ParameterValue
Weight1.2Kg
Product typeVFD-E Variable Frequency Drive
Version typeA = Standard drive
Cooling methodNatural Cooling
Mains input voltage43 = 460V Three phase
Applicable motor capacity015 = 2 HP(1.5kW)
Max. applicable motor output1.5

Product details

Sizing a 1.5 kW drive on 460 V three-phase

The Delta VFD015E43A sits in the VFD-E series at the 1.5 kW (2 HP) frame on 460 V three-phase mains — the frame's motor ceiling is 1.5 kW, so it covers the 2 HP pump, fan, and conveyor loads typically specified at that rating. Natural cooling means no integral fan — the heatsink relies on cabinet airflow, which matters in a sealed panel where the integrator must confirm the enclosure dissipates the drive's standing losses without forcing a derate.

In-family stepping points

The same VFD-E frame on 460 V three-phase is also offered at 0.75 kW (1 HP) — a half-step down for lighter loads without leaving the 460 V three-phase input class or the natural-cooled footprint.

Frequently asked questions

What is the Delta VFD015E43A's motor rating and input voltage?

VFD015E43A is rated for 1.5 kW (2 HP) motors on 460 V three-phase input. The '43' in the code denotes the 460 V three-phase mains class and the '015' denotes the 2 HP / 1.5 kW frame — matching the standard VFD-E series naming convention.

Does the VFD015E43A need a panel fan for cooling?

No. The drive is specified as natural-cooled — no integral fan. Cabinet airflow has to carry the heatsink load; in a sealed enclosure the integrator should verify the thermal budget so the drive does not derate under continuous duty.

MPN
VFD015E43A
