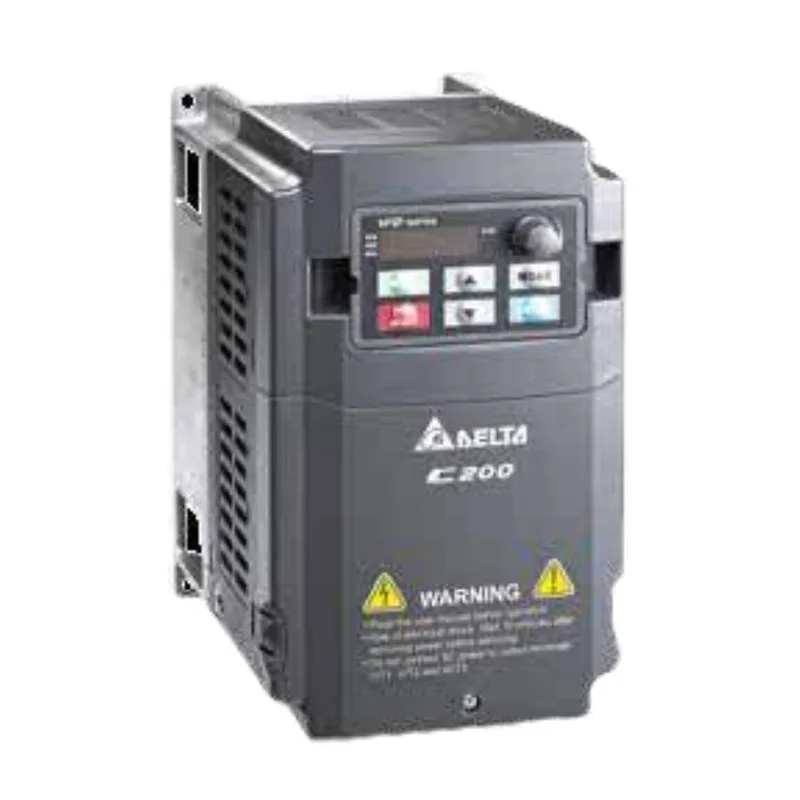

Delta VFD075CB43A-20 — AC Drive (VFD) 480V

Delta VFD075CB43A-20 C200 Drive, 7.5 kW, 460V 3-Phase, IP20

MPNVFD075CB43A-20

Delta C200 Series, Economy Vector Control Drive VFD075CB43A-20, 10 HP (7.5 kW), 460 V 3-Phase, IP20, Wall Mount.

$669.00Ref. price · indicative, final on quote
Delta VFD075CB43A-20 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

VFD075CB43A-20 — Specifications
ParameterValue
Weight1.5 Kg
VersionA=Wall mount
C200 seriesCB
Series nameVFD = Variable Frequency Drive
Product typeEconomy Vector Control Drive C200 Series
IP protection20: IP20/UL Open Type
Input current20
Input voltage43: 460 V 3-PHASE
Control method1: V/F, 2: SVC, 3: VF+PG, 4: FOC+PG
Torque limit max.200% torque current
Applicable motor capacity075:10 HP(7.5 kW)
Max. output frequencynormal duty: 0.00~600.00Hz; Heavy duty: 0.00 ~ 300.00 Hz

Product details

Drive specs at a glance — C200 economy vector class

The Delta VFD075CB43A-20 is a C200 Series economy vector drive rated for a 10 HP (7.5 kW) motor on a 460 V three-phase input. That 200% torque limit means it can handle short-duration overloads — useful for conveyors or crushers that need a kick to break inertia. Output frequency spans 0.00 to 600.00 Hz in normal duty, or 0.00 to 300.00 Hz in heavy duty — the heavy-duty ceiling is lower because the drive is already delivering more continuous current. Control methods cover V/F, sensorless vector (SVC), VF+PG, and FOC+PG, so you can tune it to the motor feedback you have on hand.

Version A means wall-mount configuration — the drive ships with the mounting bracket and gland plate ready for a panel backplane. IP20 / UL Open Type means it is meant for a clean indoor enclosure; no washdown tolerance, so keep it out of wet or dusty zones.

Frequently asked questions

Where can I buy VFD075CB43A-20 and how do I get a price?

The VFD075CB43A-20 is sourced through independent distribution and quoted to order against an RFQ. Current pricing and availability are confirmed at quote time — submit an RFQ through this listing.

What motor size does VFD075CB43A-20 drive?

It is rated for a 10 HP (7.5 kW) motor on 460 V three-phase input. That is the applicable motor capacity — match your motor nameplate to this figure.

What is the torque overload capability of this drive?

The drive delivers up to 200% torque current for short-duration overloads. That is typical for the C200 economy vector class — enough for breakaway torque on loaded conveyors or mixers.

What control methods does VFD075CB43A-20 support?

It supports V/F, sensorless vector (SVC), VF+PG, and FOC+PG. That gives you a choice between open-loop and closed-loop control depending on whether you have an encoder feedback card installed.

MPN
VFD075CB43A-20
