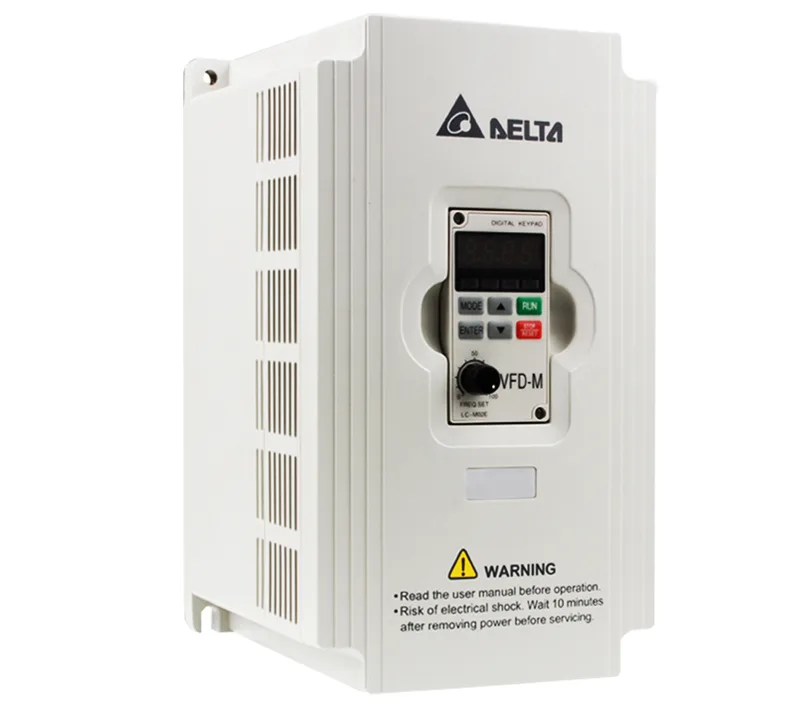

Delta VFD110B23B

Delta VFD110B23B VFD-M Series Micro Drive, 230V 3-Phase

MPN VFD110B23B

Delta VFD-M series, VFD110B23B, general sensorless vector control micro drive, three-phase 230V input, current lifecycle stage.

$1,048.00 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

VFD110B23B specifications
ParameterValue
Input voltageThree phase 230 V

Product details

The Delta VFD110B23B is a VFD-M series general-purpose sensorless vector micro drive, fed by a three-phase 230 V supply. The 'B' version type marks the hardware revision, so if you're swapping a VFD110B23A, check the parameter set — the terminal layout and communication map are the same, but the firmware base can differ. It's a sensorless vector drive, meaning it handles variable-torque loads like fans and pumps without an encoder feedback card — the motor model inside estimates rotor position from current and voltage.

Three-phase 230 V input means this drive is sized for the North American 208–230 V industrial supply, not the 400 V class common in Europe. If your plant runs 480 V, you need the VFD-CP200 or VFD-E series at the 460 V rating.

MPN
VFD110B23B
