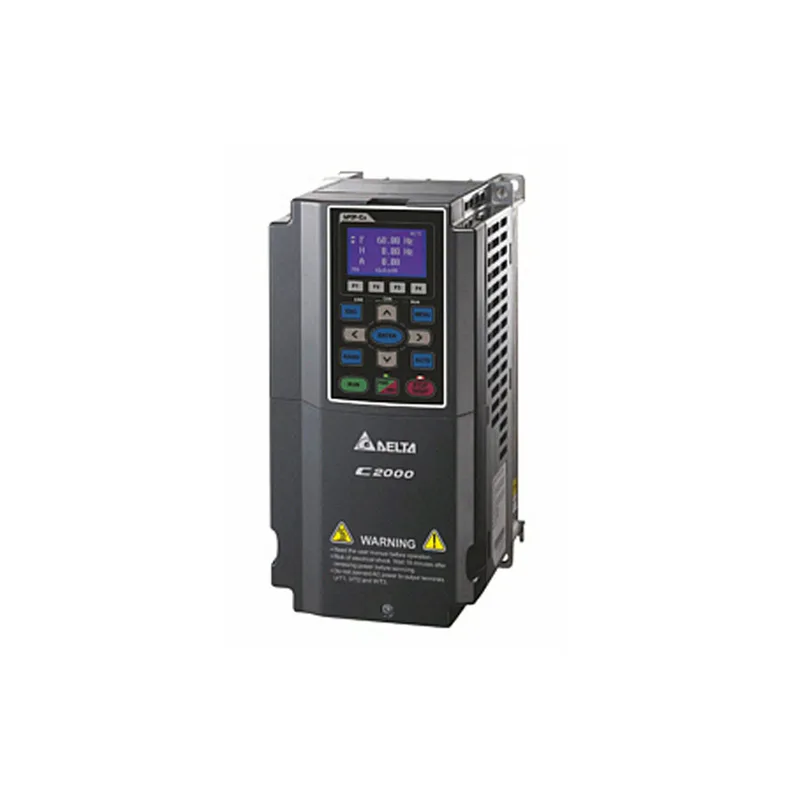

Delta C2000 Series AC Drive, VFD220C43A, 22 kW (30 HP), 460 V 3-phase input, 45 A rated output, 36 kVA, 9.8 kg.
Delta VFD220C43A C2000 AC Drive, 22 kW, 45 A, 460 V 3-Phase
MPNVFD220C43A
Delta C2000 Series AC Drive, VFD220C43A, 22 kW (30 HP), 460 V 3-phase input, 45 A rated output, 36 kVA, 9.8 kg.
$1,413.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Weight | 9.8 kg |
| C2000 series | C |
| Product type | Delta Products AC Drives, C2000 Series |
| Version type | A |
| Input voltage | 43 - 460V 3-PHASE |
| Rated output current | 45 |
| Applicable motor capacity | 220 - 30HP(22kW) ~ 3350:475HP(335kW) |
| Rated output capacity | 36 |
| Series name(Variable frequency drive) | VFD |
Product details
Frequently asked questions
What is the closest functional alternative to VFD220C43A?
The VFD185C43A is the next frame down in the same C2000 series C platform, rated 38 A output for 18.5 kW (25 HP) motors. It shares the same 460 V 3-phase input and 9.8 kg weight, but the 7 A lower output current means it cannot drive a 22 kW motor at full load.
Where can I buy VFD220C43A and get current pricing?
The VFD220C43A is sourced to order against an RFQ through independent distribution. Current pricing and availability are confirmed at quote time.
Will VFD220C43A drop into a panel specified for VFD185C43A?
Yes — both drives share the same C2000 series C hardware platform, same 460 V 3-phase input, and same 9.8 kg weight. The mechanical footprint and mounting pattern are identical, so no rewiring or panel modification is needed for the swap. The only difference is the higher output current rating on the VFD220C43A.
MPN
VFD220C43A
