The Delta VFD370C43S is a C2000 Series AC drive rated for a 30 kW (40 HP) induction motor at 69 A output current and 55 kVA apparent power. That 69 A figure governs the cable sizing and upstream protection — it's the continuous full-load current the drive delivers to the motor, not a peak. The 0.00 to 300.00 Hz max output frequency covers most constant-torque and variable-torque applications up to high-speed spindle ranges. Carrier frequency defaults to 2 kHz and can be set up to 6 kHz; raising it quiets the motor but increases drive losses, so for a 30 kW frame you'll typically leave it at the 2 kHz default unless acoustic noise is a specific concern.

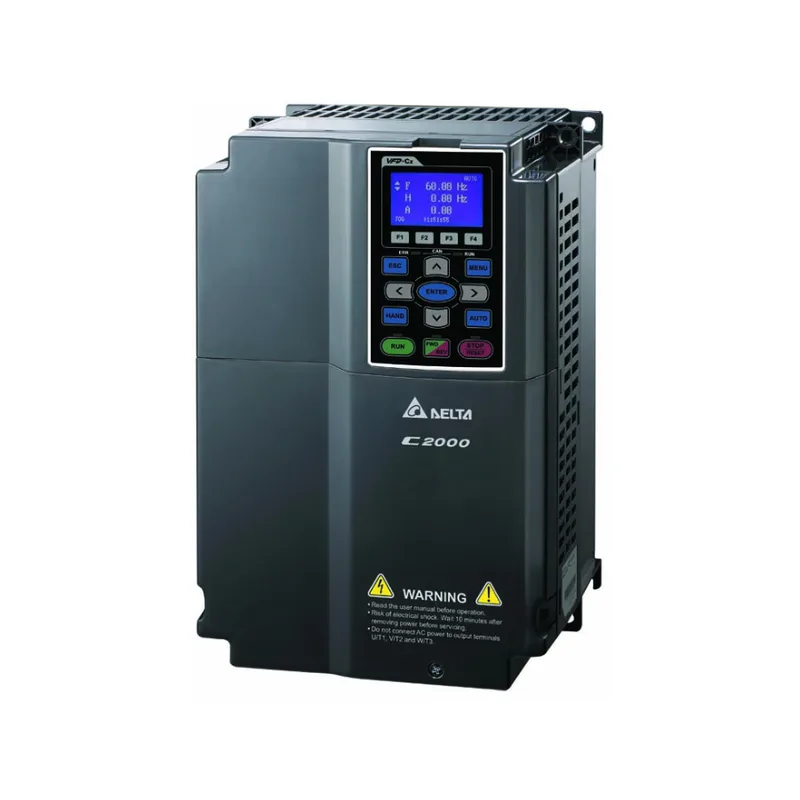

Delta VFD370C43S C2000 AC Drive, 30 kW, 69 A, 55 kVA
MPNVFD370C43S
Delta Products, AC Drives, C200 Series, VFD370C43S, 30 kW / 40 HP, 69 A rated output, 55 kVA, 27 kg.
$1,982.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Product type | Delta Products, AC Drives, C200 Series |
| Parameter | Value |
|---|---|
| Weight | 27kg |
| Parameter | Value |
|---|---|
| Carrier frequency | 2 ~ 6(default setting 2) |
| Dimensions ( l x w x h ) | 26.5cm x 29cm x 51cm |
| Rated output current | 69 |
| Max output frequency | 0.00 ~ 300.00 |
| Rated output capacity | 55 |
| Applicable motor output | 40 |
| Series Name(Variable frequency drive) | VFD |
Product details
Frequently asked questions
How do I get current pricing and availability for VFD370C43S?
The VFD370C43S is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at the time of quote.
Will VFD370C43S drop into a panel that was specified around VFD055C43A without rewiring?
No. The VFD370C43S weighs 27 kg and measures 26.5 cm x 29 cm x 51 cm, while the VFD055C43A weighs 2.6 kg — the physical footprint, mounting provisions, and power wiring (69 A vs 11 A rated output) are completely different. A panel designed for the smaller drive would need substantial rework to accept the 30 kW unit.
What is VFD370C43S's listed weight?
The VFD370C43S has a listed weight of 27 kg, with a shipping weight of 28 kg.
MPN
VFD370C43S
