Festo ADN-100-40-A-P-A — Pneumatic Cylinders & Actuators

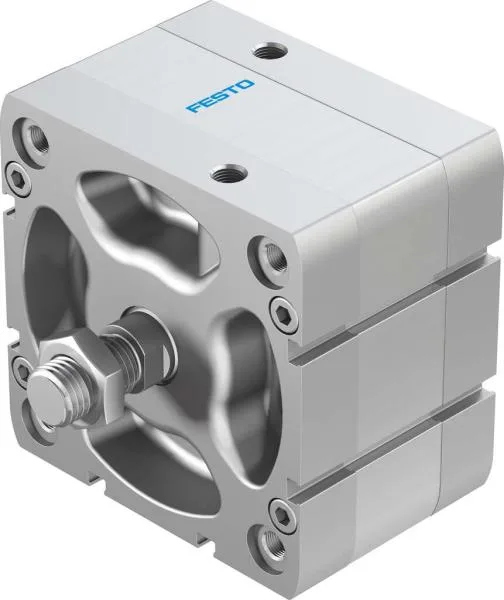

Festo ADN-100-40-A-P-A

MPNADN-100-40-A-P-A
Active

COMPACT CYLINDER

$235.88 – $322.20Ref. price · indicative, final on quote
Festo ADN-100-40-A-P-A datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

ADN-100-40-A-P-A — Identification
ParameterValue
SeriesADN
ADN-100-40-A-P-A — Configuration
ParameterValue
OperationDouble Acting
TypeLinear Actuator
ConstructionCompact Cylinder
ADN-100-40-A-P-A — Dimensions
ParameterValue
Stroke length1.575" (40.00mm)
ADN-100-40-A-P-A — Pneumatic
ParameterValue
Operating pressure9 ~ 145 PSI (0.6 ~ 10 bar)
Connection methodG1/8
ADN-100-40-A-P-A — Mechanical
ParameterValue
Shaft detailExternal Thread M16 x 1.5
FeaturesISO Standardized
ADN-100-40-A-P-A — Environmental
ParameterValue
Operating temperature-20°C ~ 80°C
MPN
ADN-100-40-A-P-A
