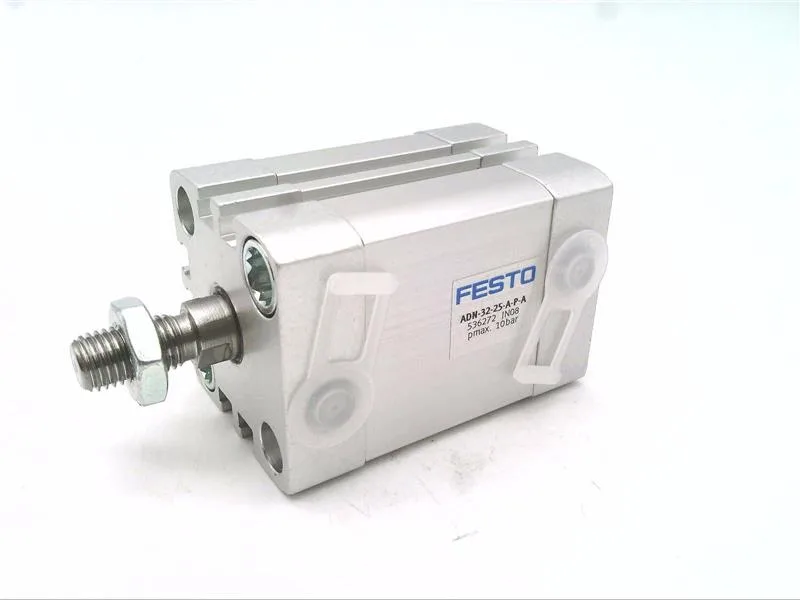

Festo ADN-32-25-A-P-A
MPNADN-32-25-A-P-A
Active
Compact ISO Cylinder, Double Acting, 25mm, Bore Size 32mm, G1/8"
$75.77 – $108.17Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | ADN |
| Action type | Double Acting |
| Rod end type | Male |
| Cylinder type | ISO Compact Cylinder |
| Connection port size | G1/8" |
| Width | 47 mm |
| Height | 47 mm |
| Seal material | PUR |
| Housing material | Aluminium Anodised |
| Piston rod material | Steel |
| Length | 50 mm |
| Stroke | 25 mm |
| Bore size | 32 mm |
| Piston rod thread | M10 x 1.25 mm |
| Operating pressure max. | 1 MPa |
| Operating pressure min. | 60 kPa |
MPN
ADN-32-25-A-P-A
