Festo ADN-S-12-30-I-P-A
MPNADN-S-12-30-I-P-A
Active

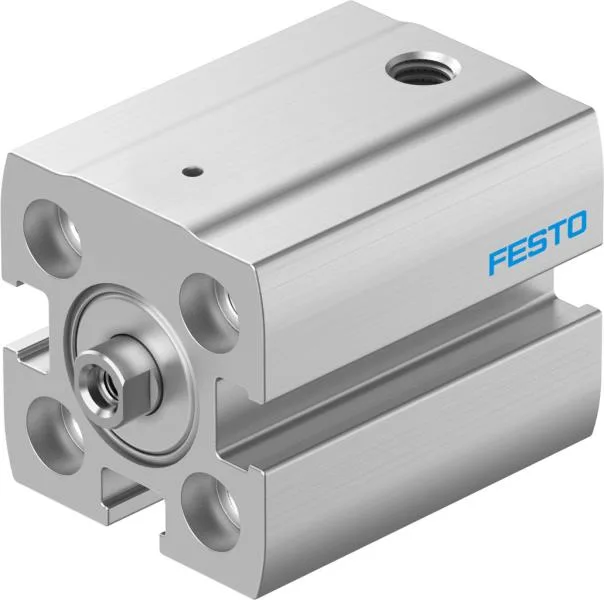

Compact Cylinder, Double Acting, 30mm, Bore Size 12mm M5
$42.58 – $56.46Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | ADN-S |
| Action type | Double Acting |
| Rod end type | Female |
| Cylinder type | Compact Cylinder |
| Connection port size | M5 |
| Width | 28 mm |
| Height | 27 mm |
| Seal material | NBR;PUR |
| Housing material | Aluminium Anodised |
| Piston rod material | Stainless Steel |
| Length | 52 mm |
| Stroke | 30 mm |
| Bore size | 12 mm |
| Operating pressure max. | 10 bar |
| Operating pressure min. | 1 bar |
MPN
ADN-S-12-30-I-P-A
