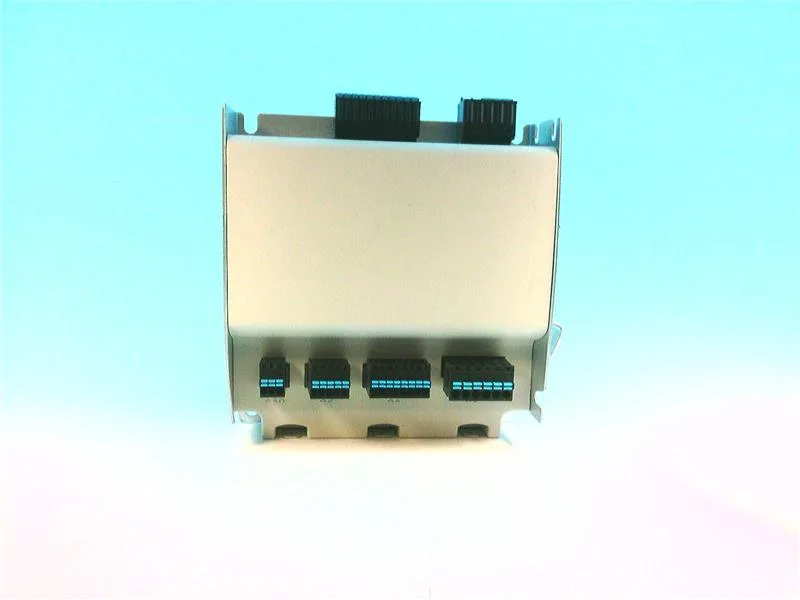

Festo CMMO-ST-C5-1-DIOP
MPNCMMO-ST-C5-1-DIOP
FESTO 1512316 MOTOR CONTROLLER
$607.80Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Type of product | Motor Controller |
| Max. DC link voltage | 28 V |
| Nominal voltage, load supply | 24 VDC |
| Nominal output current | 5.7 A |
| Peak current, load supply | 8 A |
| Nominal current load supply | 6 A |
| Ethernet supported protocols | TCP/IP |
| Mounting | On Sub-Base, Screwed Tightly, With H-Rail |
| Operating temperature | 0 / 50 °C |
| Weight | 0,32 kg |
| Dimensions | 113 x 108 x 38 mm |
| Model | CMMO-ST-C5-1-DIOP |
All specifications+11 ▾
| Parameter | Value |
|---|---|
| Display | Seven-Segment Display |
| Condition | Used |
| Shelf no. | 221101 , 250603 |
| Line filter | Integrated |
| Manufacturer | Festo |
| Braking resistor | 15 Ohm |
| IP rating | IP40 |
| Process interfacing | I/O Coupling, For 32 Positioning Blocks |
| Digital logic inputs | 11 |
| Input switching logic | PNP |
| Rotor position sensor | Encoder |
MPN
CMMO-ST-C5-1-DIOP
