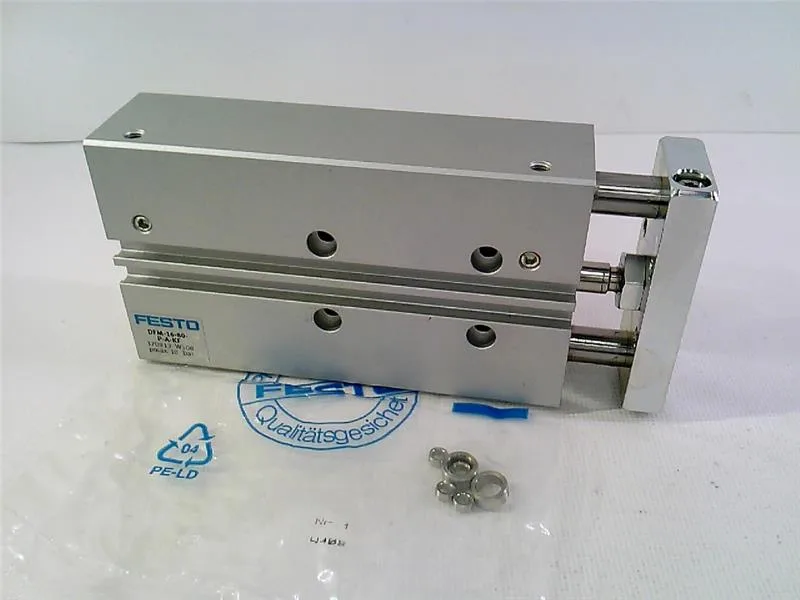

Festo DFM-16-80-P-A-KF
MPNDFM-16-80-P-A-KF
Guide Cylinder, 80mm, 800mm/s, 200... 1MPa, 60°C, Bore Size 16mm, M5
$380.94 – $460.65Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | DFM |
| Cylinder type | Guide Cylinder |
| Mounting | Screw |
| Connection port size | M5 |
| Operating temperature max. | 60 °C |
| Operating temperature min. | -5 °C |
| Seal material | NBR;PUR |
| Piston rod material | Stainless Steel |
| Stroke | 80 mm |
| Bore size | 16 mm |
| Piston speed max. | 800 mm/s |
| Piston speed min. | 0 mm/s |
| Operating pressure max. | 1 MPa |
| Operating pressure min. | 200 kPa |
MPN
DFM-16-80-P-A-KF
