What the DRQ-63-180-PPVJ-A actually is

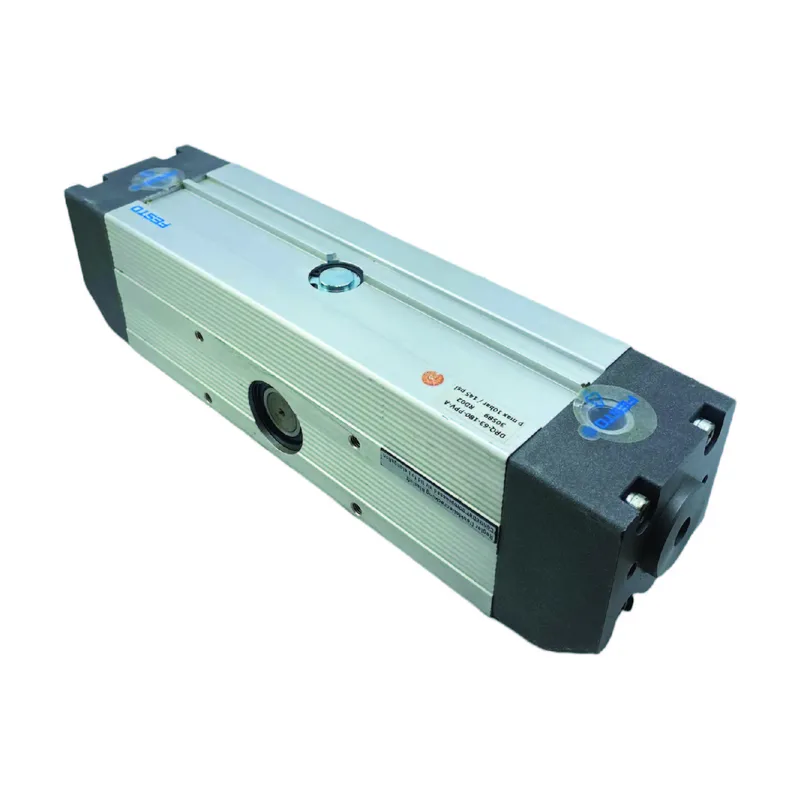

The DRQ-63-180-PPVJ-A is a Festo DRQ-series semi-rotary drive — a piston-driven pneumatic actuator that converts linear air force into a controlled swivel motion rather than a continuous rotation, sized at a 63 mm piston diameter for industrial load points that sit between light vane actuators and full rack-and-pinion units. The nominal swivel angle is 180°, which is the standard half-turn most indexing and diverting duty calls for; vane-style half-turn actuators tend to be limited to under 270° by construction, so the buyer choosing this part is locking in a half-revolution stroke for flap, diverter, or clamp service.
What the suffix codes PPVJ and A actually deliver
PPVJ means pneumatic cushioning adjustable at both ends with end position adjustment — the air bleed at each end-of-stroke is tunable, and the end positions themselves can be set, which lets the integrator slow a heavy load into the stop without mechanical shock and trim the final rest angle without shimming the mount. The trailing A means the housing is prepared for proximity sensing — typically by accepting magnetic-field sensors on the body — rather than carrying an integrated position transmitter; the buyer sources the sensors separately and they click onto the rail.
