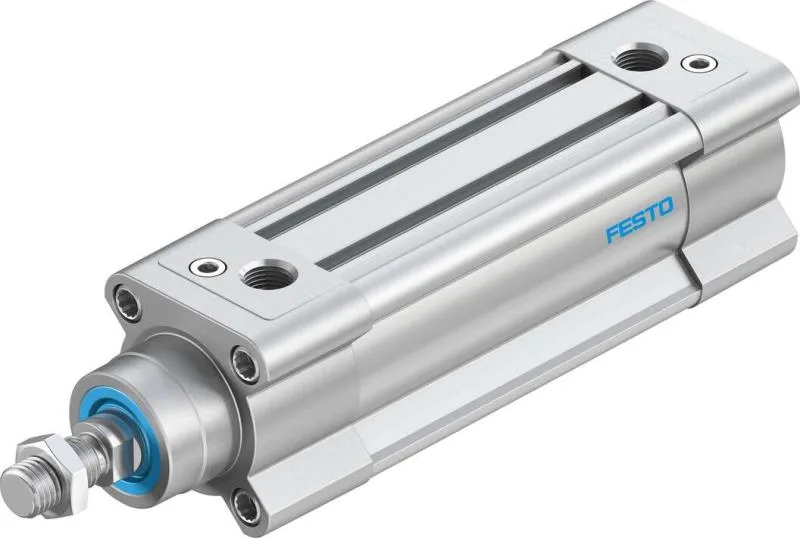

Festo DSBC-40-70-PPVA-N3
MPNDSBC-40-70-PPVA-N3
Active
Cylinder, Double Acting, 70mm, Bore Size 40mm, G1/4"
$167.72 – $207.67Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | DSBC |
| Action type | Double Acting |
| Rod end type | Male |
| Cylinder type | ISO Cylinder |
| Connection port size | G1/4" |
| Width | 54 mm |
| Height | 54 mm |
| Seal material | PUR |
| Housing material | Aluminium |
| Piston rod material | Steel |
| Length | 204 mm |
| Stroke | 70 mm |
| Bore size | 40 mm |
| Piston rod thread | M12 x 1.25 mm |
| Piston speed max. | 700 mm/s |
| Piston speed min. | 300 mm/s |
| Operating pressure max. | 12 bar |
| Operating pressure min. | 600 mbar |
MPN
DSBC-40-70-PPVA-N3
