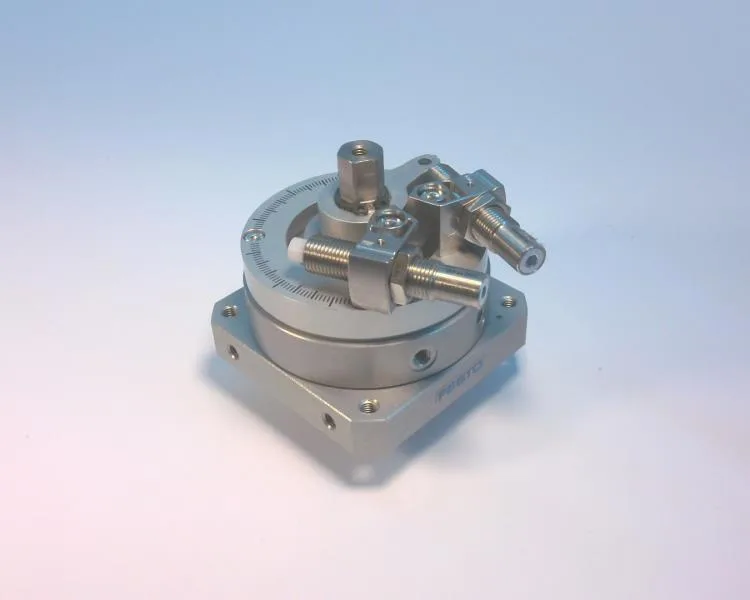

Festo DSM-16-270-CC-FW-A-B — Pneumatic Cylinders & Actuators

Festo DSM-16-270-CC-FW-A-B

MPNDSM-16-270-CC-FW-A-B
Active

SEMI-ROTARY DRIVE

$706.02 – $927.80Ref. price · indicative, final on quote
Festo DSM-16-270-CC-FW-A-B datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

DSM-16-270-CC-FW-A-B — Identification
ParameterValue
SeriesDSM
DSM-16-270-CC-FW-A-B — Configuration
ParameterValue
OperationDouble Acting
TypeRotary Actuator
ConstructionVane Cylinder
DSM-16-270-CC-FW-A-B — Dimensions
ParameterValue
Stroke length270°
DSM-16-270-CC-FW-A-B — Pneumatic
ParameterValue
Operating pressure26.1 ~ 145 PSI (1.8 ~ 10 bar)
Connection methodM5
DSM-16-270-CC-FW-A-B — Mechanical
ParameterValue
Shaft detailRound Keyed
FeaturesISO Standardized
DSM-16-270-CC-FW-A-B — Environmental
ParameterValue
Operating temperature-10°C ~ 60°C
MPN
DSM-16-270-CC-FW-A-B
