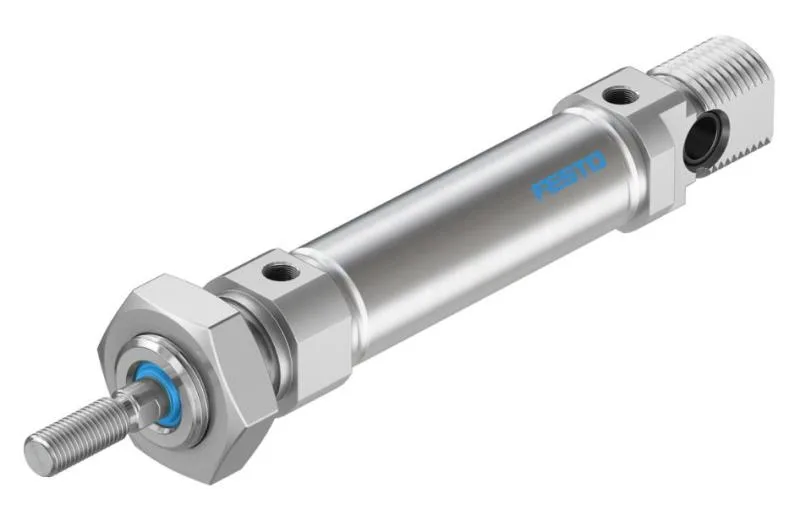

Festo DSNU-16-160-PPV-A
MPNDSNU-16-160-PPV-A
Active
Cylinder, Double Acting, 160mm, Bore Size 16mm, M5
$71.25 – $100.60Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | DSNU |
| Action type | Double Acting |
| Rod end type | Male |
| Cylinder type | ISO Cylinder |
| Connection port size | M5 |
| Width | 24 mm |
| Height | 24 mm |
| Seal material | PUR;NBR |
| Housing material | Stainless Steel |
| Piston rod material | Steel |
| Length | 95 mm |
| Stroke | 160 mm |
| Bore size | 16 mm |
| Piston rod thread | M6 |
| Operating pressure max. | 1 MPa |
| Operating pressure min. | 100 kPa |
MPN
DSNU-16-160-PPV-A
