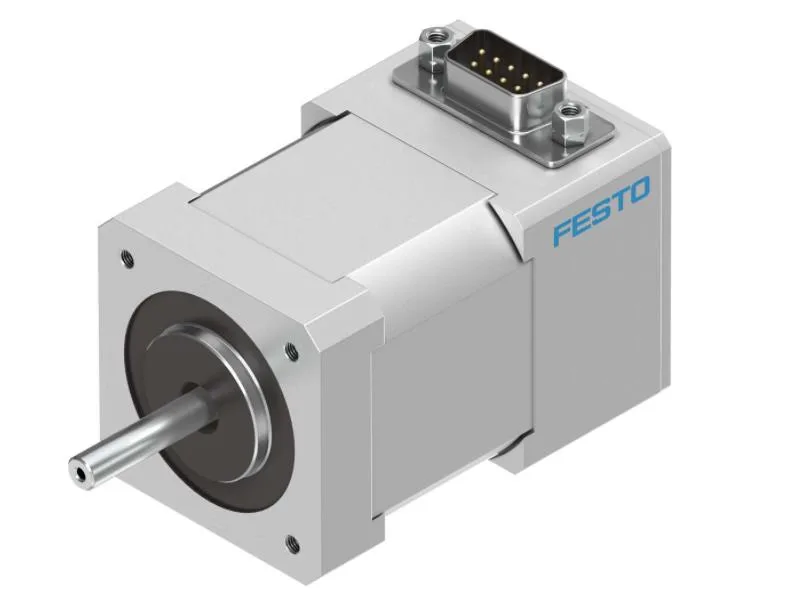

Festo EMMS-ST-42-S-S-G2
MPNEMMS-ST-42-S-S-G2
Stepper Motor 500Nmm 1740min-1 1.8° NEMA 17
$175.00 – $306.63Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | EMMS-ST |
| Parameter | Value |
|---|---|
| Rotor inertia | 82 gcm² |
| Parameter | Value |
|---|---|
| Number of phases | 2 |
| Parameter | Value |
|---|---|
| Length | 90 mm |
| Parameter | Value |
|---|---|
| Width | 42.3 mm |
| Height | 48.7 mm |
| NEMA size | NEMA 17 |
| Inductance | 3.3 mH |
| Motor type | Hybrid Motor |
| Step angle | 1.8 ° |
| Output speed | 1740 min<sup>-1</sup> |
| Shaft length | 22 mm |
| Current | 1.8 A |
| Holding torque | 500 Nmm |
| Shaft diameter | 5 mm |
| IP rating | IP54 |
| Resistance per phase | 1.75 Ohm |
| Operating voltage max. | 48 VDC |
MPN
EMMS-ST-42-S-S-G2
