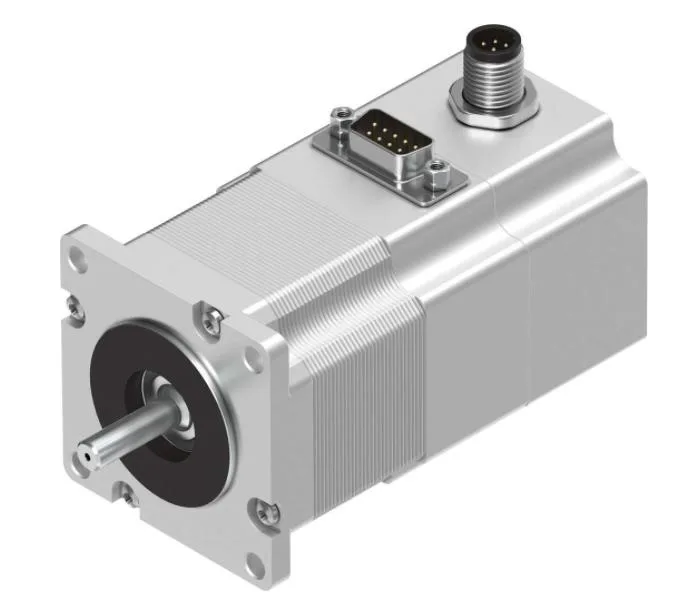

Festo EMMS-ST-57-S-SE-G2
MPNEMMS-ST-57-S-SE-G2
Stepper Motor with Encoder 800Nmm 2720min-1 1.8° NEMA 23
$468.00 – $603.10Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Series | EMMS-ST |
Performance
| Parameter | Value |
|---|---|
| Rotor inertia | 290 gcm² |
Electrical
| Parameter | Value |
|---|---|
| Number of phases | 2 |
Mechanical
| Parameter | Value |
|---|---|
| Length | 123.1 mm |
Other specifications
| Parameter | Value |
|---|---|
| Width | 56.4 mm |
| Height | 69.4 mm |
| NEMA size | NEMA 23 |
| Inductance | 500 uH |
| Motor type | Hybrid Motor |
| Step angle | 1.8 ° |
| Output speed | 2720 min<sup>-1</sup> |
| Shaft length | 20.6 mm |
| Current | 5 A |
| Holding torque | 800 Nmm |
| Shaft diameter | 6.35 mm |
| IP rating | IP54 |
| Resistance per phase | 150 mOhm |
| Operating voltage max. | 48 VDC |
MPN
EMMS-ST-57-S-SE-G2
