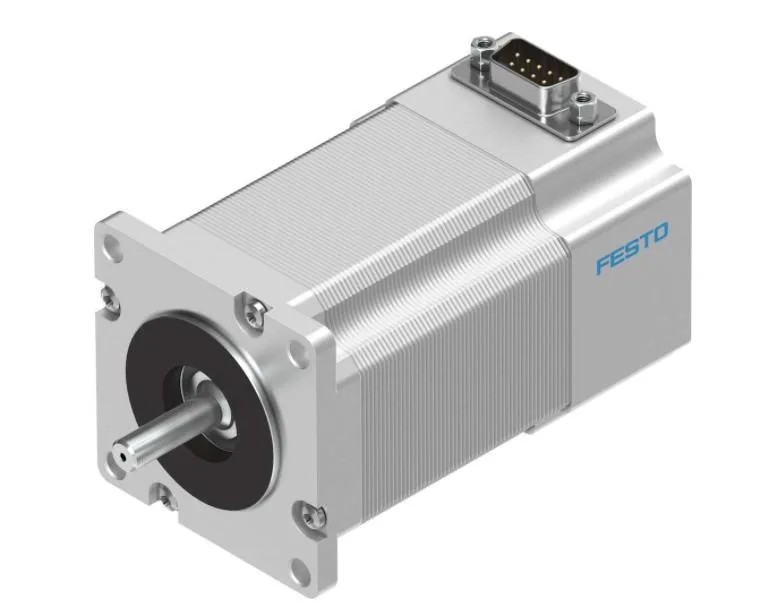

Festo EMMS-ST-57-S-SEB-G2
MPNEMMS-ST-57-S-SEB-G2
Stepper Motor with Brake and Encoder 800Nmm 2720min-1 1.8° NEMA 23
$964.00 – $1,212.60Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | EMMS-ST |
| Parameter | Value |
|---|---|
| Rotor inertia | 290 gcm² |
| Parameter | Value |
|---|---|
| Number of phases | 2 |
| Parameter | Value |
|---|---|
| Length | 138 mm |
| Parameter | Value |
|---|---|
| Width | 56.4 mm |
| Height | 56.4 mm |
| NEMA size | NEMA 23 |
| Inductance | 500 uH |
| Motor type | Hybrid Motor |
| Step angle | 1.8 ° |
| Output speed | 2720 min<sup>-1</sup> |
| Shaft length | 20.6 mm |
| Current | 5 A |
| Holding torque | 800 Nmm |
| Shaft diameter | 6.35 mm |
| IP rating | IP54 |
| Resistance per phase | 150 mOhm |
| Operating voltage max. | 48 VDC |
MPN
EMMS-ST-57-S-SEB-G2
