Festo EMMS-ST-87-S-SEB-G2
MPNEMMS-ST-87-S-SEB-G2

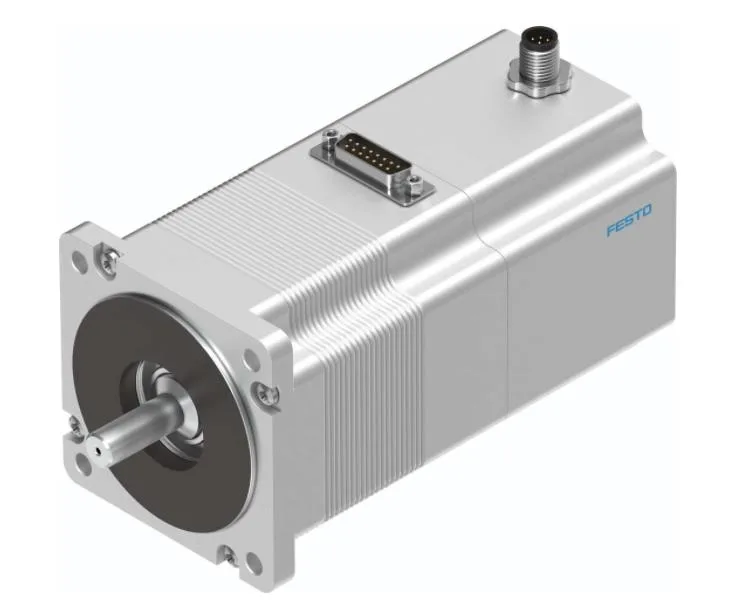

Stepper Motor with Brake and Encoder 2.5Nm 2130min-1 1.8° NEMA 34
$1,065.00 – $1,484.31Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Series | EMMS-ST |
Performance
| Parameter | Value |
|---|---|
| Rotor inertia | 1000 gcm² |
Electrical
| Parameter | Value |
|---|---|
| Number of phases | 2 |
Mechanical
| Parameter | Value |
|---|---|
| Length | 152.6 mm |
Other specifications
| Parameter | Value |
|---|---|
| Width | 85.85 mm |
| Height | 85.85 mm |
| NEMA size | NEMA 34 |
| Inductance | 450 uH |
| Motor type | Hybrid Motor |
| Step angle | 1.8 ° |
| Output speed | 2130 min<sup>-1</sup> |
| Shaft length | 27 mm |
| Current | 9.5 A |
| Holding torque | 2.5 Nm |
| Shaft diameter | 11 mm |
| IP rating | IP54 |
| Resistance per phase | 100 mOhm |
| Operating voltage max. | 48 VDC |
MPN
EMMS-ST-87-S-SEB-G2
