Festo HEE-3/8-D-MINI-24 — Solenoid & Directional Valves

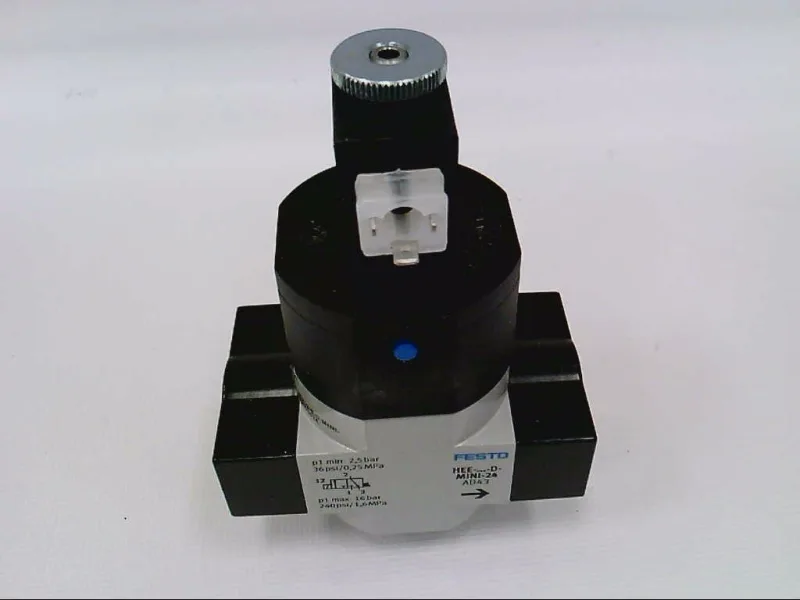

Festo HEE-3/8-D-MINI-24

MPNHEE-3/8-D-MINI-24

Flow Control Equipment, Compressed Air / Inert Gas, 1600L/min, 104mm

$139.11 – $226.28Ref. price · indicative, final on quote
Festo HEE-3/8-D-MINI-24 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026

Specifications

HEE-3/8-D-MINI-24 — Valve Function
ParameterValue
Product typeOn-Off Valve
HEE-3/8-D-MINI-24 — Ports & Connection
ParameterValue
Connection sizeG3/8"
Mounting typeIn-Line
HEE-3/8-D-MINI-24 — Performance
ParameterValue
Flow rate1600 l/min
HEE-3/8-D-MINI-24 — Media & Pressure
ParameterValue
Media type (alt.)Compressed Air;Inert Gas
HEE-3/8-D-MINI-24 — Mechanical
ParameterValue
Housing materialDie-Cast Aluminium
Length70 mm
Height104 mm
HEE-3/8-D-MINI-24 — Environmental
ParameterValue
Operating temperature, max.60 °C
Operating temperature, min.-10 °C
HEE-3/8-D-MINI-24 — Other specifications
ParameterValue
Supply pressure max.1.6 MPa
Supply pressure min.250 kPa
MPN
HEE-3/8-D-MINI-24
