Festo MAP-40-16-1/8-EN
MPNMAP-40-16-1/8-EN
Active

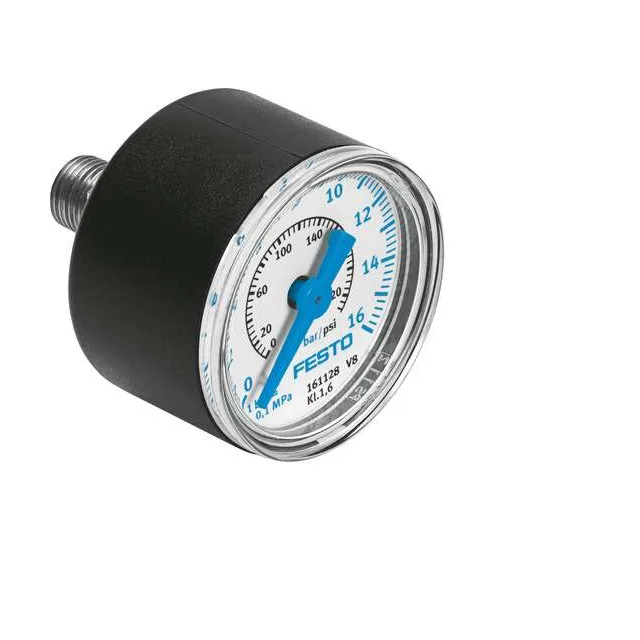

Pressure Gauge, R1/8", 1.6MPa, 60°C
$26.20 – $40.92Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | In-Line |
| Connection size | R1/8" |
| External diameter | 39 mm |
| IP rating | IP43 |
| Pressure rating max. | 1.6 MPa |
| Pressure rating min. | 0 kPa |
| Pressure gauge material | ABS |
| Operating temperature max. | 60 °C |
| Operating temperature min. | -20 °C |
MPN
MAP-40-16-1/8-EN
