Festo MOFH-3-1/8 — Solenoid & Directional Valves

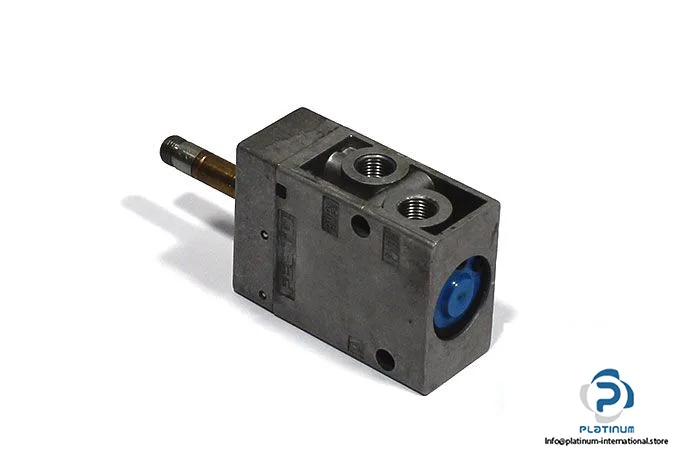

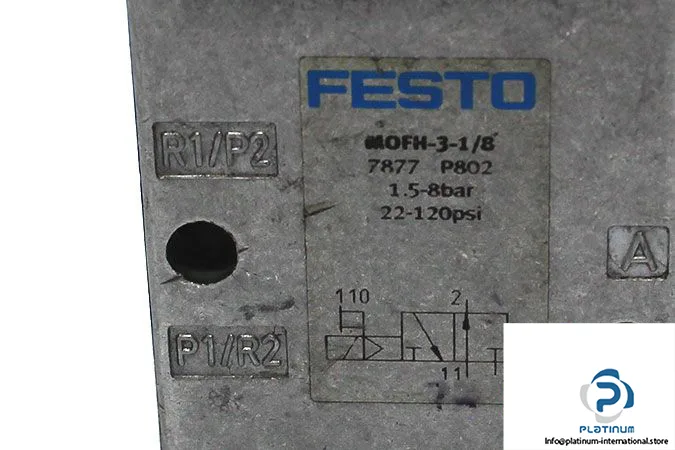

Festo MOFH-3-1/8

MPNMOFH-3-1/8

FESTO 7877 SINGLE SOLENOID VALVE

$169.40 – $188.28Ref. price · indicative, final on quote
Festo MOFH-3-1/8 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026

Specifications

MOFH-3-1/8 — Valve Function
ParameterValue
Valve configuration (ways/positions)3/2
MOFH-3-1/8 — Identification
ParameterValue
SeriesTiger Classic
MOFH-3-1/8 — Ports & Connection
ParameterValue
Connection sizeG1/8"
MOFH-3-1/8 — Electrical
ParameterValue
Electrical terminationSolenoid Coil
MOFH-3-1/8 — Media & Pressure
ParameterValue
Media type (alt.)Air
Operating pressure, min.1.5 bar
Operating pressure, max.8 bar
MOFH-3-1/8 — Mechanical
ParameterValue
Housing materialDie-Cast Aluminium
Length45 mm
Height97 mm
Width26 mm
MOFH-3-1/8 — Environmental
ParameterValue
Protection rating (IP, alt.)IP65
MPN
MOFH-3-1/8
