Festo MPYE-5-1/4-010-B — Solenoid & Directional Valves

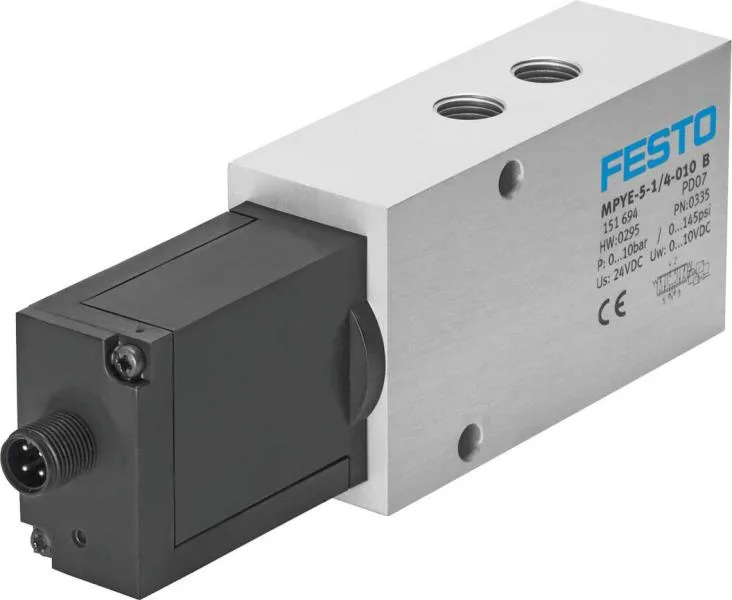

Festo MPYE-5-1/4-010-B Proportional Valve

MPNMPYE-5-1/4-010-B
Active

PROPORTIONAL DIRECTIONAL CONTROL

$1,248.48 – $1,724.11Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

MPYE-5-1/4-010-B — Valve Function
ParameterValue
Valve function5/3 Normally Closed
TypeControl Valve
MPYE-5-1/4-010-B — Identification
ParameterValue
SeriesMPYE
MPYE-5-1/4-010-B — Ports & Connection
ParameterValue
Connection methodThreaded G1/4"
Mounting typeChassis Mount
MPYE-5-1/4-010-B — Electrical
ParameterValue
FeaturesSupply Voltage 17 ~ 30VDC
MPYE-5-1/4-010-B — Media & Pressure
ParameterValue
Fluid / media typeAir
Operating pressure range0 ~ 145 PSI (0 ~ 10 bar)
MPYE-5-1/4-010-B — Environmental
ParameterValue
Ingress protection (IP rating)IP65 - Dust Tight, Water Resistant
Operating temperature range0°C ~ 50°C
MPYE-5-1/4-010-B — Approvals
ParameterValue
Approvals / certificationsCE, KC, RCM, UKCA
MPN
MPYE-5-1/4-010-B
