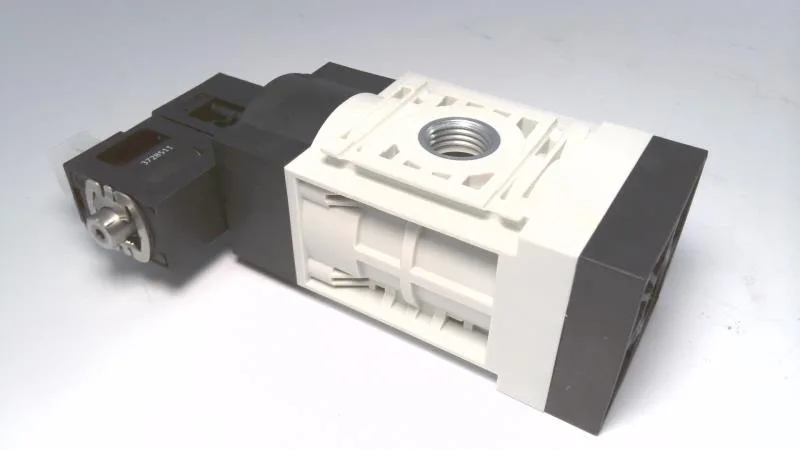

Festo MS4-EDE-1/4-V24-B
MPNMS4-EDE-1/4-V24-B
Soft-Start Valve 3/2 G1/4" 7bar Compressed Air, 7bar, IP65, 24VDC, 2.3W
$177.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | MS4 |
| Parameter | Value |
|---|---|
| Operating pressure, min. | 3 bar |
| Operating pressure, max. | 7 bar |
| Parameter | Value |
|---|---|
| Width | 40 mm |
| Height | 117 mm |
| Length | 40 mm |
| Media type | Compressed Air |
| Rated power | 2.3 W |
| Voltage | 24 VDC |
| Connection size | G1/4" |
| Housing material | Polyamide |
| IP rating | IP65 |
| Valve configuration | 3/2 |
MPN
MS4-EDE-1/4-V24-B
