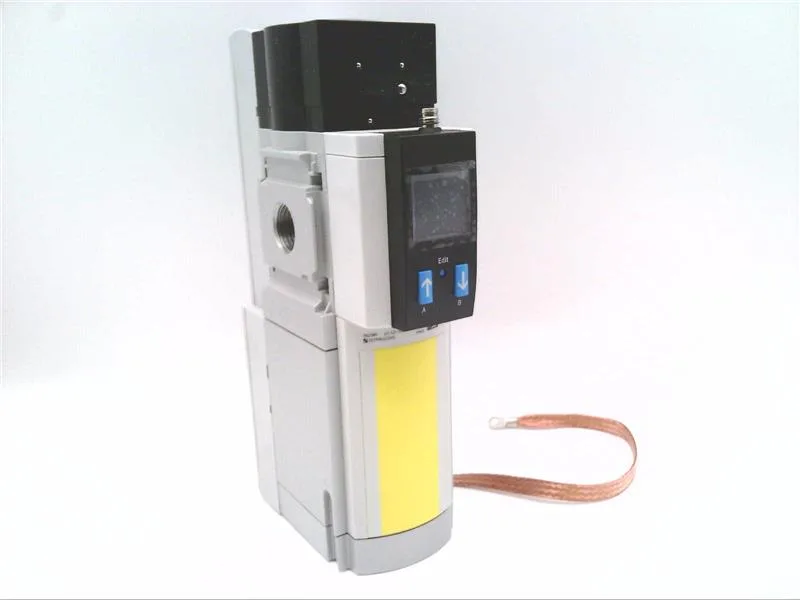

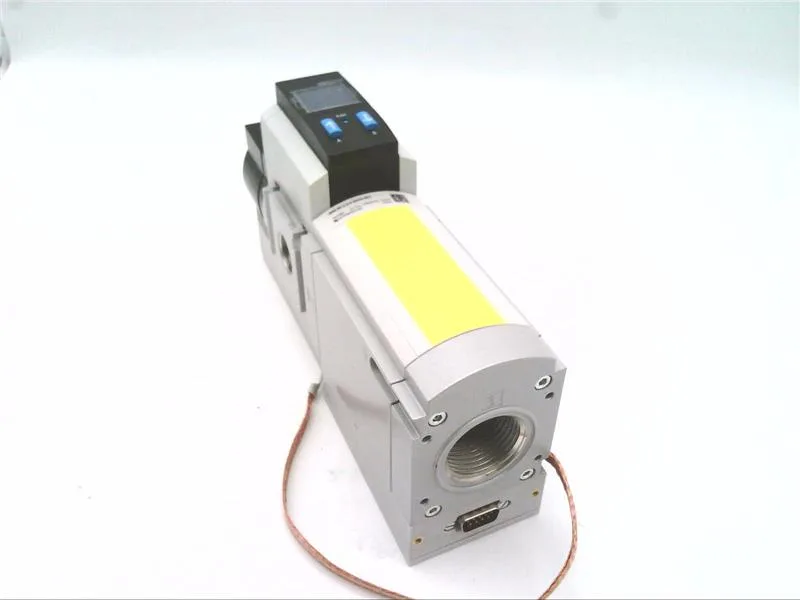

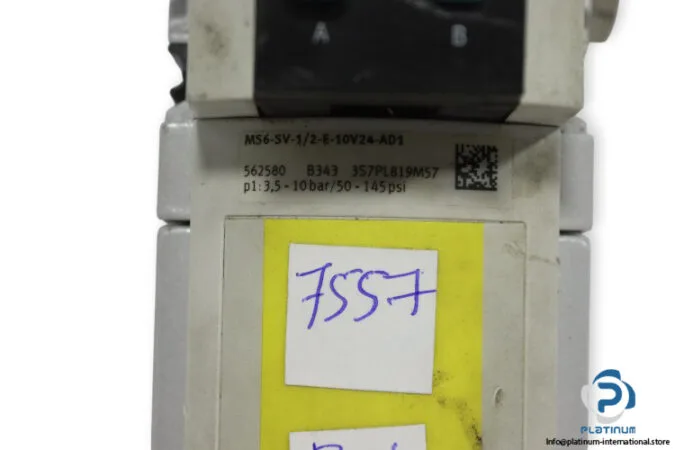

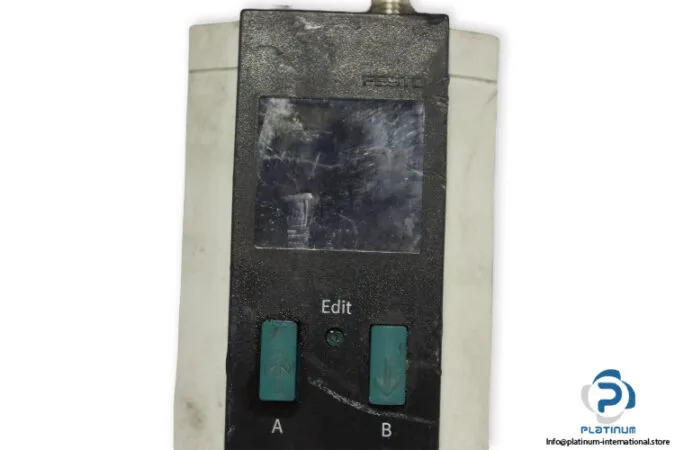

Festo MS6-SV-1/2-E-10V24-AD1 — Air Preparation (FRL)

MS6-SV-1/2-E-10V24-AD1 Festo soft-start valve IP65 3.5-10 bar

MPNMS6-SV-1/2-E-10V24-AD1
Active

SOFT-START/QUICK EXHAUST VALVE

$2,142.21 – $2,265.76Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

MS6-SV-1/2-E-10V24-AD1 — Identification
ParameterValue
Unit typeControl Valve, Maintained
Valve function3/2 Normally Closed
MS6-SV-1/2-E-10V24-AD1 — Pneumatic Performance
ParameterValue
Operating pressure51 ~ 145 PSI (3.5 ~ 10 bar)
Fluid / media typeAir, Inert Gas, Liquid
MS6-SV-1/2-E-10V24-AD1 — Connection & Mechanical
ParameterValue
Connection methodThreaded
Mounting typeSub-Base Mount
MS6-SV-1/2-E-10V24-AD1 — Environmental
ParameterValue
Operating temperature0°C~50°C
Ingress protection (IP)IP65 - Dust Tight, Water Resistant
MS6-SV-1/2-E-10V24-AD1 — Approvals
ParameterValue
Approvals / certificationsCE

Product details

Pressure range and IP65 rating

With an operating window of 3.5 to 10 bar and IP65 enclosure, the Festo MS6-SV-1/2-E-10V24-AD1 holds up in washdown zones where lower-rated valves would fail.

3/2 normally closed maintained function

The 3/2 normally closed maintained configuration means the valve stays in its last position after the pilot signal drops — a detail that matters for sequencing circuits that must hold state during a power loss.

Fluid compatibility and connections

Rated for air, inert gas, and liquid, the MS6-SV-1/2-E-10V24-AD1 uses threaded ports that simplify piping without adapters — one less leak path to chase.

MPN
MS6-SV-1/2-E-10V24-AD1
