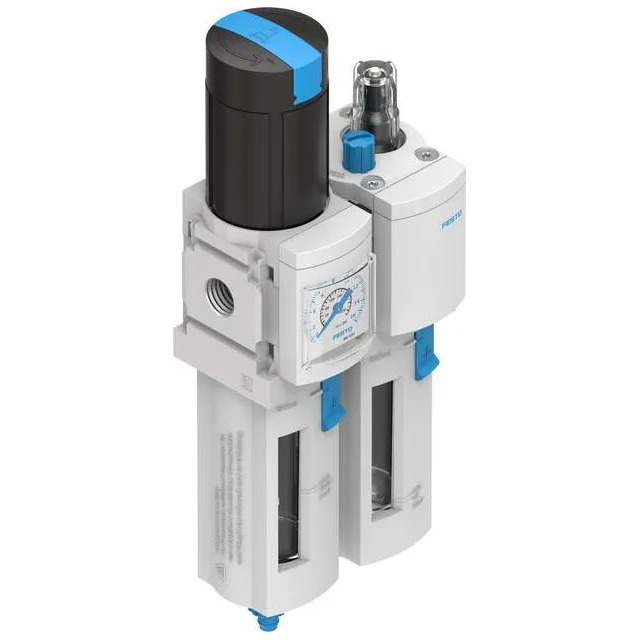

Festo MSB4-1/4-FRC5:J1M1 — Air Preparation (FRL)

Festo MSB4-1/4-FRC5:J1M1

MPNMSB4-1/4-FRC5:J1M1
Active

Service Unit Combination, 1.2MPa, 40um, G1/4"

$117.61 – $212.32Ref. price · indicative, final on quote
Festo MSB4-1/4-FRC5:J1M1 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

MSB4-1/4-FRC5:J1M1 — Identification
ParameterValue
Unit typeFilter Regulator Lubricator (FRL)
SeriesMS
FeaturesPressure Gauge
MSB4-1/4-FRC5:J1M1 — Pneumatic Performance
ParameterValue
Flow rate238GPM (900LPM)
Operating pressure21.7 ~ 203 PSI (1.5 ~ 14 bar)
Pressure regulation7.3 ~ 174 PSI (0.5 ~ 12 bar)
Fluid / media typeCompressed Air, Inert Gas
Flow directionLeft to Right
MSB4-1/4-FRC5:J1M1 — Connection & Mechanical
ParameterValue
Connection methodG1/4
MSB4-1/4-FRC5:J1M1 — Filtration & Lubrication
ParameterValue
Filtration rating40µm
Drain typeManual
MSB4-1/4-FRC5:J1M1 — Environmental
ParameterValue
Operating temperature-10°C ~ 60°C
MPN
MSB4-1/4-FRC5:J1M1
