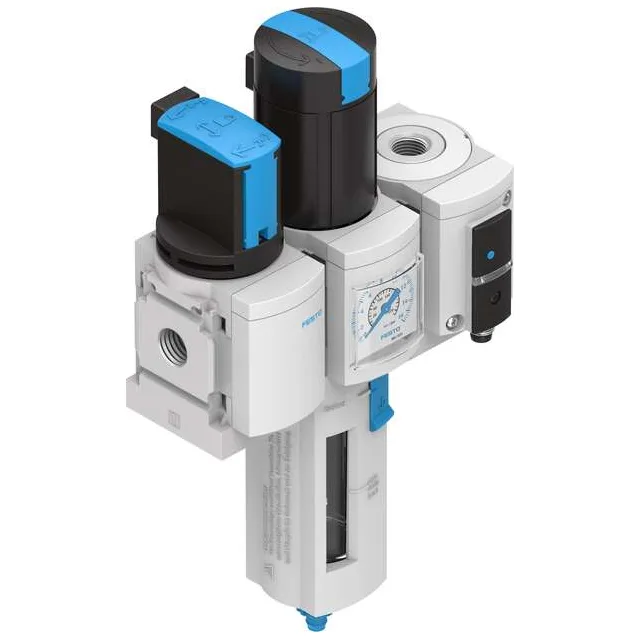

Festo MSB4-1/4:C3:J1:F12-WP
MPNMSB4-1/4:C3:J1:F12-WP
Active
Service Unit Combination, 1MPa, 40um, G1/4"
$435.40 – $514.53Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Unit type | Filter Regulator |
| Series | MS |
| Features | On/Off Valve, Pressure Gauge |
Pneumatic Performance
| Parameter | Value |
|---|---|
| Flow rate | 423GPM (1600LPM) |
| Operating pressure | 11.6 ~ 203 PSI (0.8 ~ 14 bar) |
| Pressure regulation | 7.3 ~ 145 PSI (0.5 ~ 10 bar) |
| Fluid / media type | Compressed Air, Inert Gas |
| Flow direction | Left to Right |
Connection & Mechanical
| Parameter | Value |
|---|---|
| Connection method | G1/4 |
Filtration & Lubrication
| Parameter | Value |
|---|---|
| Filtration rating | 40µm |
| Drain type | Manual |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature | 0°C ~ 50°C |
MPN
MSB4-1/4:C3:J1:F12-WP
