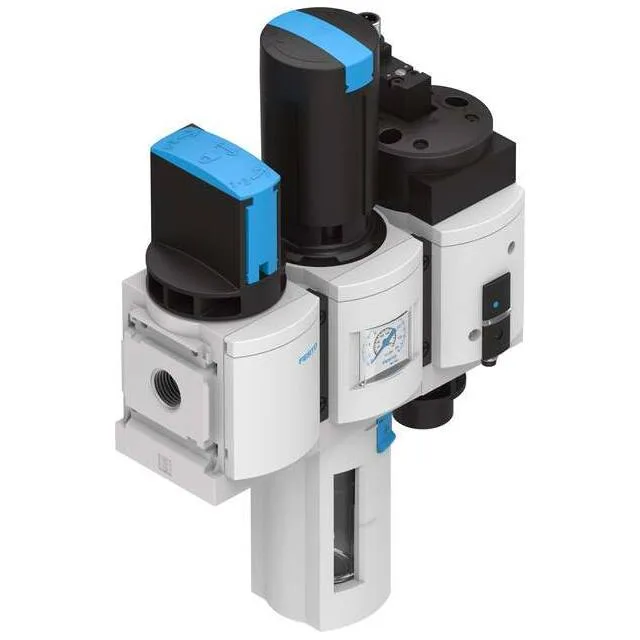

Festo MSB6-1/2:C3:J1:D14-WP — Air Preparation (FRL)

Festo MSB6-1/2:C3:J1:D14-WP

MPNMSB6-1/2:C3:J1:D14-WP
Active

Service Unit Combination, 1MPa, 40um, G1/2"

$548.99 – $803.65Ref. price · indicative, final on quote
Festo MSB6-1/2:C3:J1:D14-WP datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

MSB6-1/2:C3:J1:D14-WP — Identification
ParameterValue
Unit typeFilter Regulator
SeriesMS
FeaturesOn/Off Valve, Pressure Gauge
MSB6-1/2:C3:J1:D14-WP — Pneumatic Performance
ParameterValue
Flow rate1057GPM (4000LPM)
Operating pressure11.6 ~ 265 PSI (0.8 ~ 18 bar)
Pressure regulation7.3 ~ 145 PSI (0.5 ~ 10 bar)
Fluid / media typeCompressed Air, Inert Gas
Flow directionLeft to Right
MSB6-1/2:C3:J1:D14-WP — Connection & Mechanical
ParameterValue
Connection methodG1/2
MSB6-1/2:C3:J1:D14-WP — Filtration & Lubrication
ParameterValue
Filtration rating40µm
Drain typeManual
MSB6-1/2:C3:J1:D14-WP — Environmental
ParameterValue
Operating temperature0°C~50°C
MPN
MSB6-1/2:C3:J1:D14-WP
