Festo PUN-H-4X0,75-TSW — Fittings & Tubing

Festo PUN-H-4X0,75-TSW

MPNPUN-H-4X0,75-TSW
Active

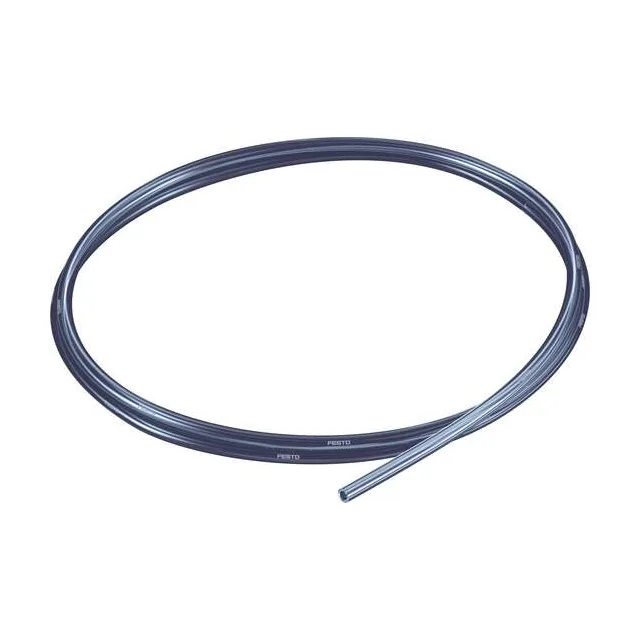

Hydrolysis Resistant Tubing, 2.6mm, 4mm, Polyurethane, Translucent, 50m

$30.00 – $54.50Ref. price · indicative, final on quote
Festo PUN-H-4X0,75-TSW datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

PUN-H-4X0,75-TSW — Identification
ParameterValue
Fitting typeTubing
PUN-H-4X0,75-TSW — Mechanical / Fit
ParameterValue
Outer diameter0.157" (4.00mm)
Inner diameter0.102" (2.60mm)
Minimum bend radius0.315" (8.00mm)
Bend radius (flow)0.630" (16.00mm)
PUN-H-4X0,75-TSW — Performance
ParameterValue
Operating pressure range-14 ~ 145PSI (-1 ~ 10 bar)
Fluid typeCompressed Air, Water
PUN-H-4X0,75-TSW — Material
ParameterValue
MaterialThermoplastic Polyurethane (TPE-U)
ColorBlack
PUN-H-4X0,75-TSW — Environmental
ParameterValue
Operating temperature range-35°C ~ 60°C
PUN-H-4X0,75-TSW — Other specifications
ParameterValue
Length164.0' (50.0m)
MPN
PUN-H-4X0,75-TSW
