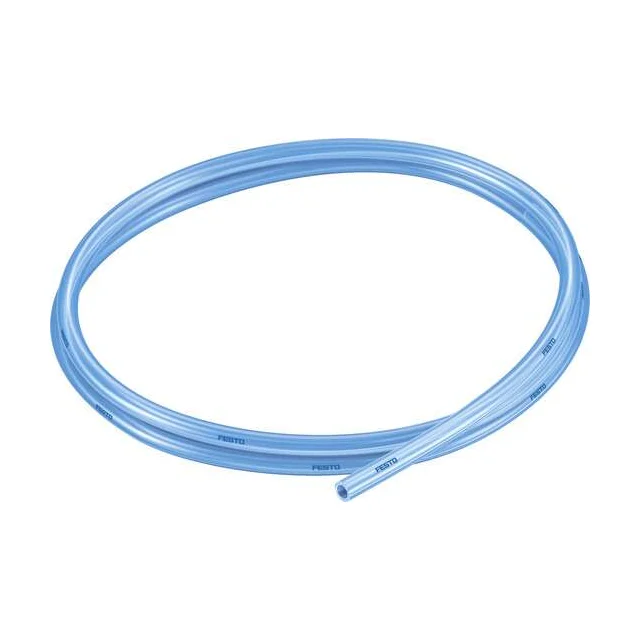

Festo PUN-H-6X1-TBL — Fittings & Tubing

Festo PUN-H-6X1-TBL

MPNPUN-H-6X1-TBL
Active

Hydrolysis Resistant Tubing, 4mm, 6mm, Polyurethane, Translucent, 50m

$42.95 – $79.50Ref. price · indicative, final on quote
Festo PUN-H-6X1-TBL datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

PUN-H-6X1-TBL — Identification
ParameterValue
Fitting typeTubing
PUN-H-6X1-TBL — Mechanical / Fit
ParameterValue
Outer diameter0.236" (6.00mm)
Inner diameter0.157" (4.00mm)
Minimum bend radius0.394" (10.00mm)
Bend radius (flow)1.024" (26.00mm)
PUN-H-6X1-TBL — Performance
ParameterValue
Operating pressure range-14 ~ 145PSI (-1 ~ 10 bar)
Fluid typeCompressed Air, Water
PUN-H-6X1-TBL — Material
ParameterValue
MaterialThermoplastic Polyurethane (TPE-U)
ColorBlue
PUN-H-6X1-TBL — Environmental
ParameterValue
Operating temperature range-35°C ~ 60°C
PUN-H-6X1-TBL — Other specifications
ParameterValue
Length164.0' (50.0m)
MPN
PUN-H-6X1-TBL
