Festo SIEN-M8B-NS-S-L — Proximity Sensors

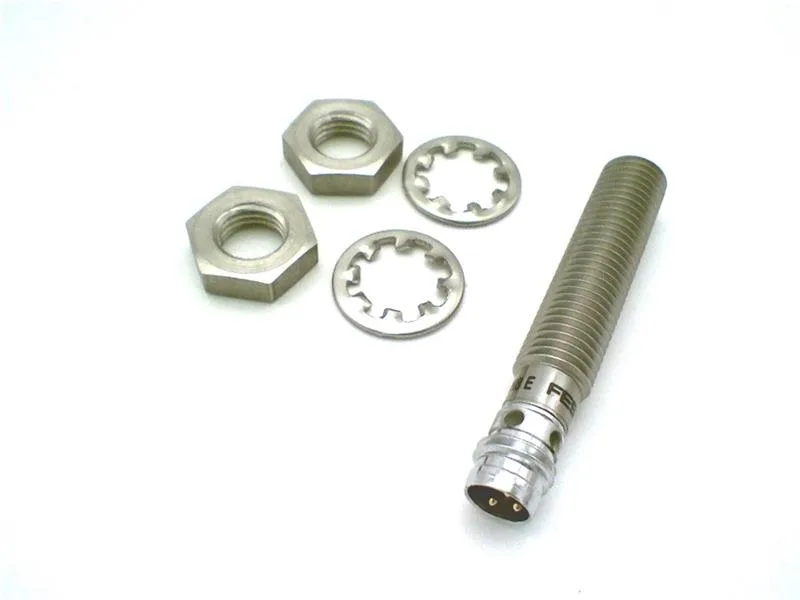

Festo SIEN-M8B-NS-S-L Inductive Sensor, M8, NPN NO, Current

MPNSIEN-M8B-NS-S-L

Festo SIEN Series, Inductive Sensor, M8 barrel, NPN normally open output, part SIEN-M8B-NS-S-L, weight 0.02 kg.

$117.53Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

SIEN-M8B-NS-S-L — Specifications
ParameterValue
Weight0.02 kgs

Product details

It's a current-production part, so no lifecycle concerns for new builds or spares.

The M8 barrel diameter is the key mechanical fit — it determines the mounting hole size and the sensing face diameter. An M8 sensor typically offers a short sensing range (around 1.5 mm flush or 2.5 mm non-flush for steel targets), so it's sized for tight spaces like gripper fingers, small cylinder positions, or compact transfer stations. The NPN NO output means it sinks current when a target is detected; verify your PLC input card or relay coil is compatible with NPN (sinking) logic.

Inductive sensors detect the presence of metal targets without contact — common on pneumatic actuators, conveyor guides, and end-of-travel stops in assembly and packaging lines. The M8 form factor fits into tight mounting brackets and manifold blocks typical of Festo valve terminals and guided cylinders.

Frequently asked questions

Where can I buy SIEN-M8B-NS-S-L?

This part is sourced and quoted to order against an RFQ through independent distribution channels. Availability and current pricing are confirmed at quote time.
