The Festo SMEO-1-LED-24 is a magnetic reed proximity switch rated for 12-27 V AC/DC with a maximum switching current of 2 A and switching capacity of 40 W. The reed contact is normally open, switching at up to 500 Hz, which covers most pneumatic actuator position sensing at standard cycle rates. The IP66 enclosure and PET housing mean it handles washdown environments — suitable for food-and-bev or wet machining lines where ingress is a concern. The 2.5 m cable is fixed, so plan your junction box placement accordingly; no quick-disconnect option on this variant.

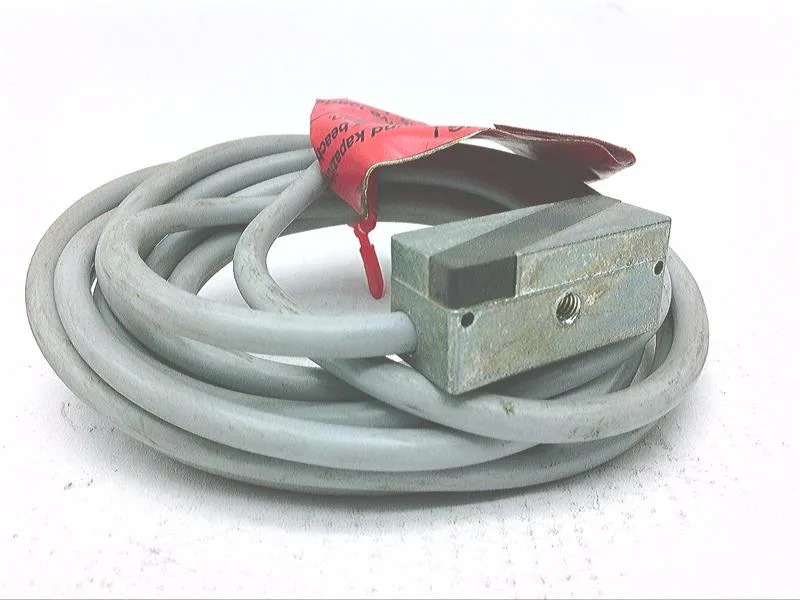

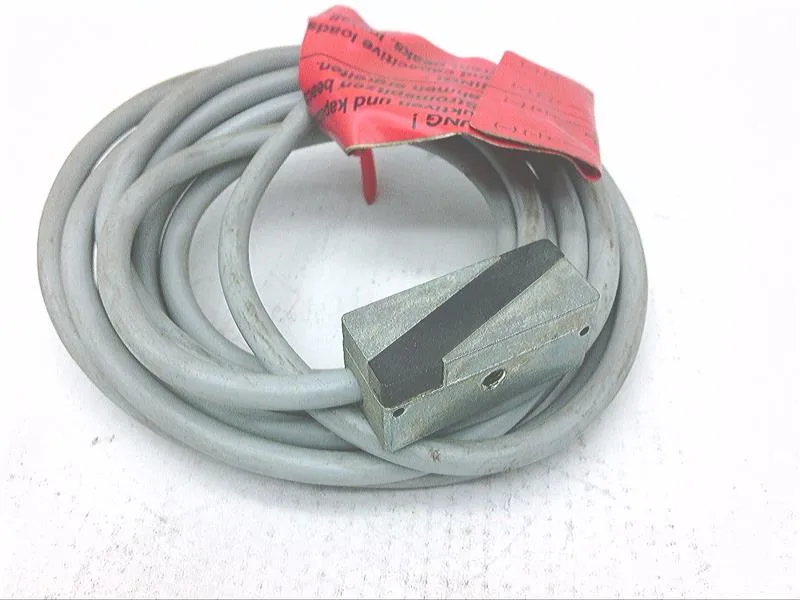

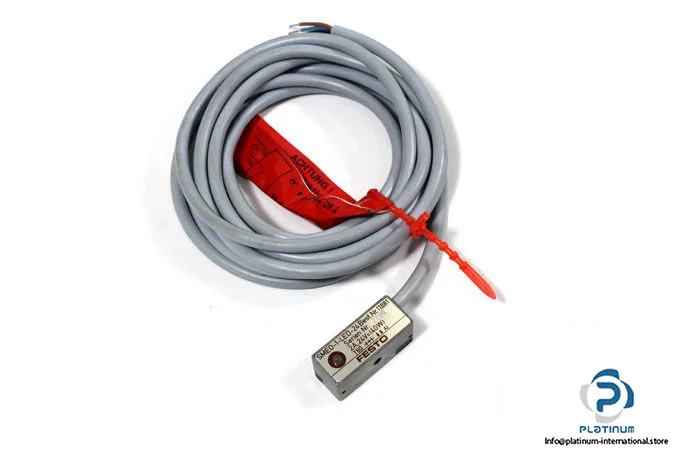

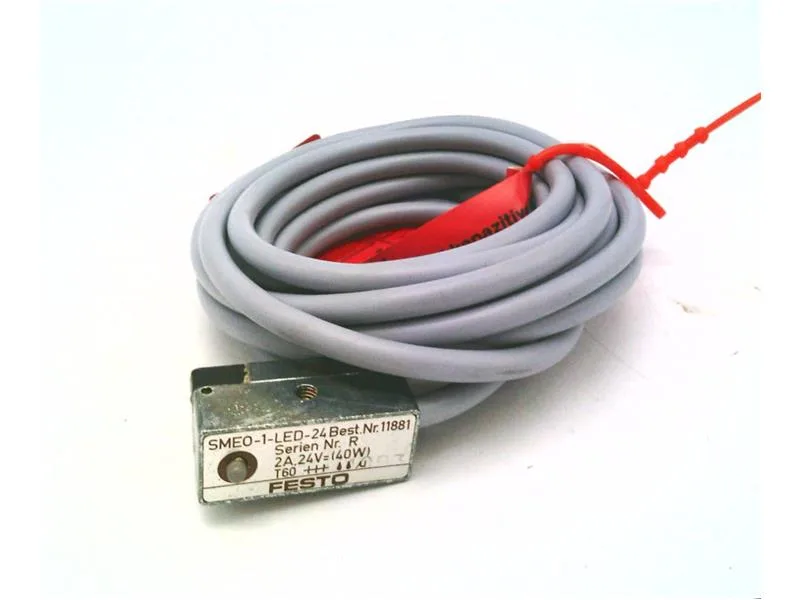

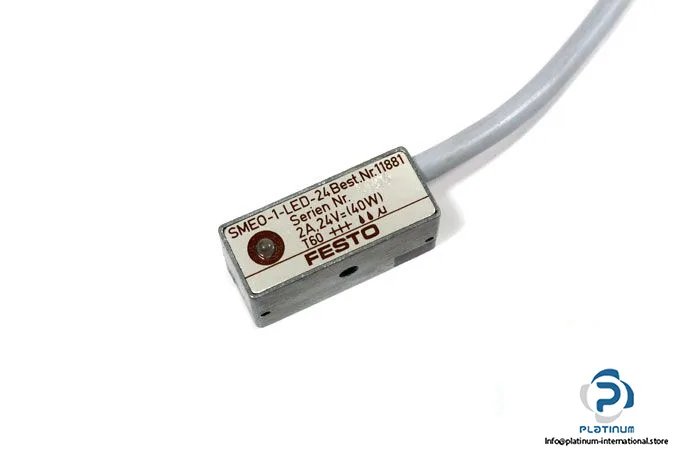

Festo SMEO-1-LED-24 Proximity Switch, Magnetic Reed, 12-27 V
MPNSMEO-1-LED-24
Festo SMEO-1-LED-24 PROXIMITY SWITCH, magnetic reed, 12-27 V AC/DC, 2 A switching current, cable 2.5 m, IP66.
$27.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | PROXIMITY SWITCH |
| Parameter | Value |
|---|---|
| Switching output | Normally open |
| Switching frequency | 500 Hz |
| Parameter | Value |
|---|---|
| Housing material | PET |
| Parameter | Value |
|---|---|
| Model | SMEO-1-LED-24 |
| Weight | 155 g |
| Condition | New / Used |
| Shelf no. | 200105 |
| Connector type | Cable, 2.5 m |
| IP rating | IP66 |
| Operating voltage | 12 … 27 V AC/DC |
| Switching capacity | 40 W |
| Measuring principle | Magnetic reed |
| Switching current max. | 2 A |
| Diameter, housing length | 15.5 x 14 x 34 mm |
| Ambient operating temperature | -20 … 70°C |
Product details
Frequently asked questions
What is the listed type and model for this component?
The type is PROXIMITY SWITCH and the model is SMEO-1-LED-24.
Will SMEO-1-LED-24 drop into a panel specified around SME-O-1 without rewiring?
No. The SME-O-1 is rated for 220 V AC/DC, while the SMEO-1-LED-24 operates on 12-27 V AC/DC. The housing dimensions are identical (15.5 x 14 x 34 mm), so the mechanical fit and mounting are the same, but the voltage difference requires a power supply change or a different control voltage tap. The cable length also differs: 2.5 m on the LED version versus 2 m on the SME-O-1.
