The Festo SMEO-4U-K5-LED-24 is a magnetic reed proximity sensor in a U-shaped round housing with a 5 m cable. It switches at 500 mA over a 12…30 V DC supply range, normally open output. The IP67 rating means the sensor body and cable entry hold up in washdown environments — suitable for food-and-bev or packaging lines where hose-down is routine.

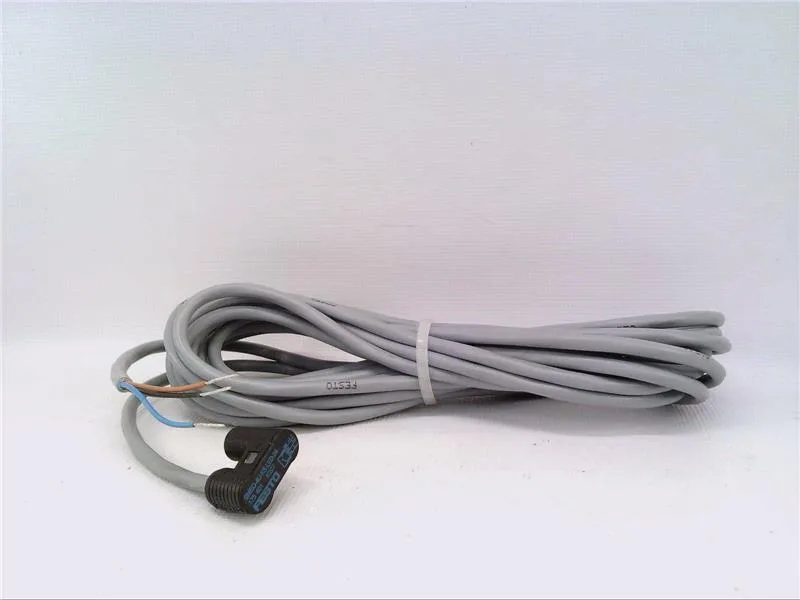

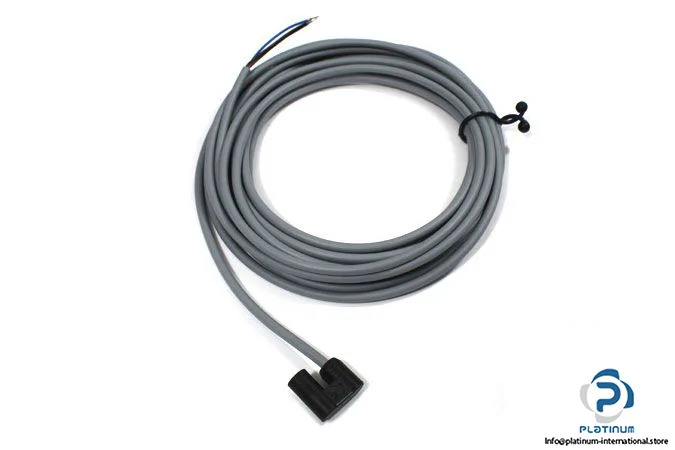

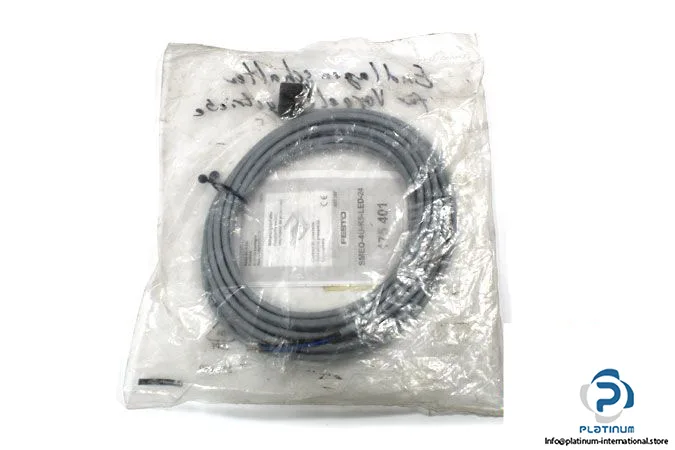

Festo SMEO-4U-K5-LED-24 Proximity Sensor, Magnetic Reed, 500
MPNSMEO-4U-K5-LED-24
Festo SMEO-4U-K5-LED-24 PROXIMITY SENSOR, Magnetic reed, 12…30 V DC, 500 mA, IP67, Cable 5 m, U-shaped housing.
$184.70Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | PROXIMITY SENSOR |
| Parameter | Value |
|---|---|
| Switching output | Normally open |
| Parameter | Value |
|---|---|
| Housing material | PET |
| Parameter | Value |
|---|---|
| Model | SMEO-4U-K5-LED-24 |
| Condition | New |
| Shelf no. | 200105 |
| Connector type | Cable, 5 m |
| Housing design | Round design, U-shaped housing |
| IP rating | IP67 |
| Operating current | 500 mA |
| Operating voltage | 12 … 30 V DC |
| Measuring principle | Magnetic reed |
| Ambient operating temperature | -20 … 60°C |
Product details
Frequently asked questions
Where can I buy SMEO-4U-K5-LED-24 and get a price?
This part is sourced and quoted to order against an RFQ through independent distribution. Submit an RFQ for current availability and pricing — confirmed at quote time.
Will SMEO-4U-K5-LED-24 drop into a panel specified around SME-8M-DS-24V-K-5,0-OE?
Not without checking. Both are magnetic reed sensors with 500 mA switching and normally open outputs, but the SMEO-4U-K5-LED-24 uses a 5 m cable (vs the SME-8M-DS-24V-K-5,0-OE's unspecified cable length) and has a narrower operating temperature range (-20…60°C vs -40…70°C). The U-shaped housing may also differ in mounting dimensions. Review the mechanical fit and thermal requirements before swapping.
