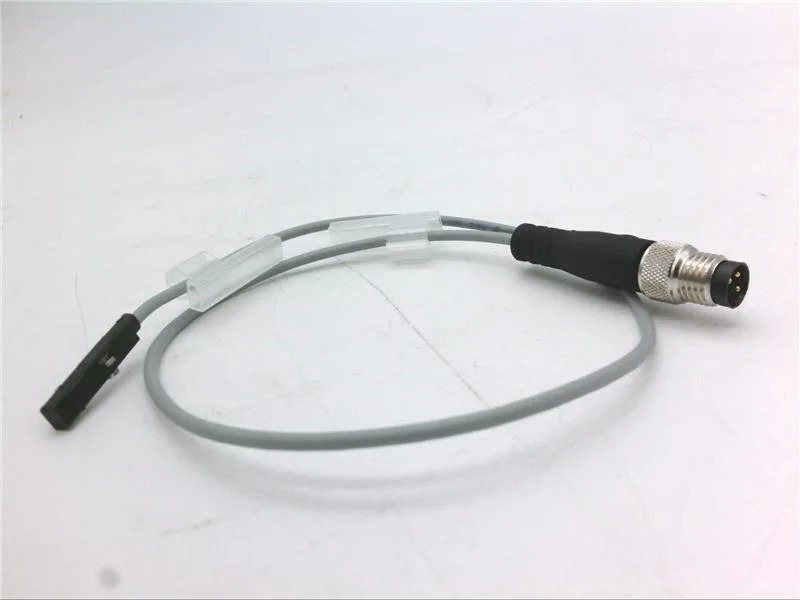

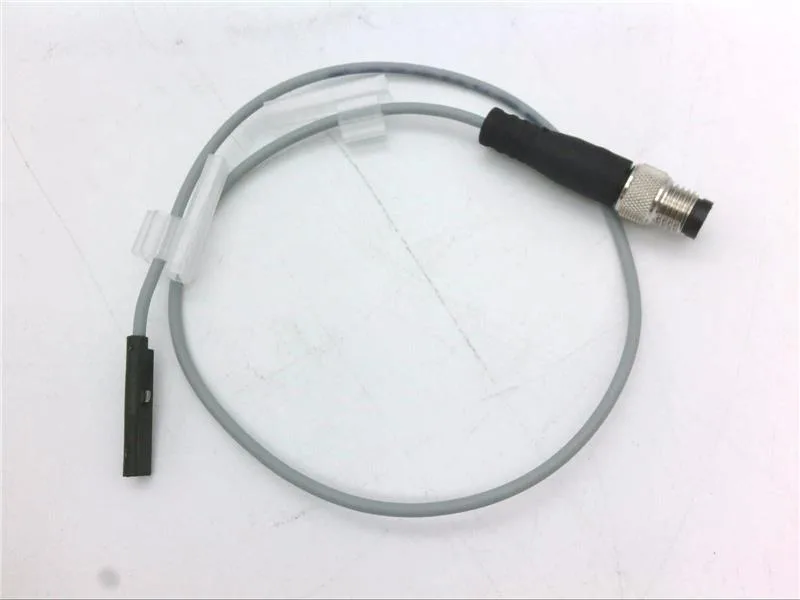

Festo SMT-10M-NS-24V-E-0,3-L-M8D — Proximity Sensors

Festo SMT-10M-NS-24V-E-0,3-L-M8D

MPNSMT-10M-NS-24V-E-0,3-L-M8D

Magnetoresistive Proximity Sensor, NPN 30VDC 100mA 2.8W 1.4ms 150Hz NO IP65 / IP68 SMT

$53.31 – $106.35Ref. price · indicative, final on quote
Festo SMT-10M-NS-24V-E-0,3-L-M8D datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

SMT-10M-NS-24V-E-0,3-L-M8D — Identification
ParameterValue
SeriesSMT
SMT-10M-NS-24V-E-0,3-L-M8D — Electrical
ParameterValue
Operating voltage, max.30 VDC
Operating voltage, min.5 VDC
Termination typeM8;Plug
SMT-10M-NS-24V-E-0,3-L-M8D — Output
ParameterValue
Switching frequency150 Hz
SMT-10M-NS-24V-E-0,3-L-M8D — Mechanical
ParameterValue
Mounting typeClamp Mount
SMT-10M-NS-24V-E-0,3-L-M8D — Environmental
ParameterValue
Operating temperature, max.70 °C
Operating temperature, min.-40 °C
IP protection ratingIP65;IP68
SMT-10M-NS-24V-E-0,3-L-M8D — Other specifications
ParameterValue
Sensor typeMagnetic
Release time1.4 ms
Switching capacity2.8 W
Contact configurationNO
Switching current max. - DC100 mA
MPN
SMT-10M-NS-24V-E-0,3-L-M8D
