Festo SMT-8-PS-S-LED-24-B — Proximity Sensors

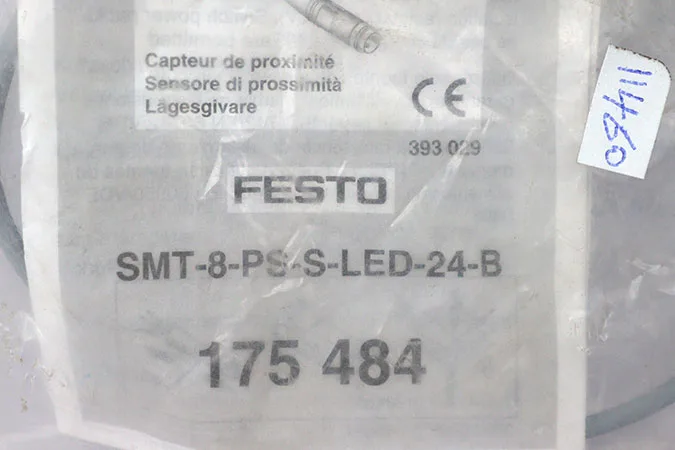

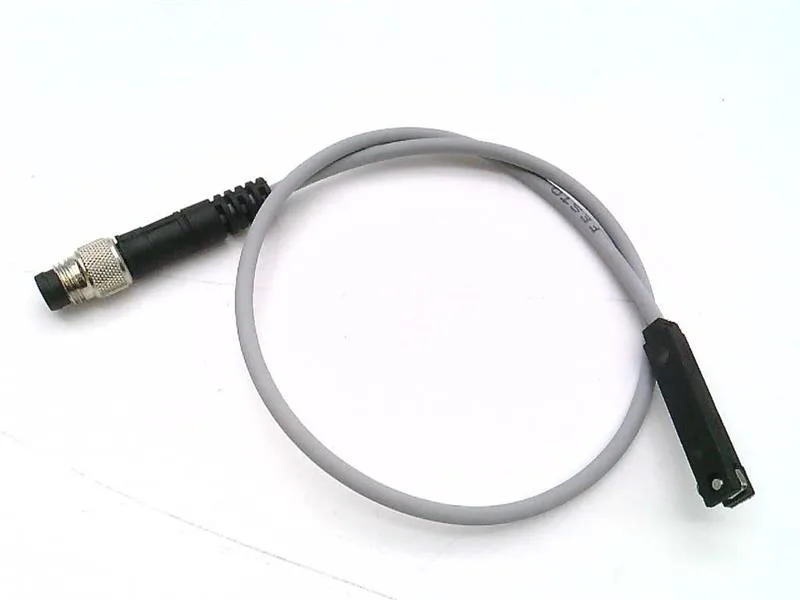

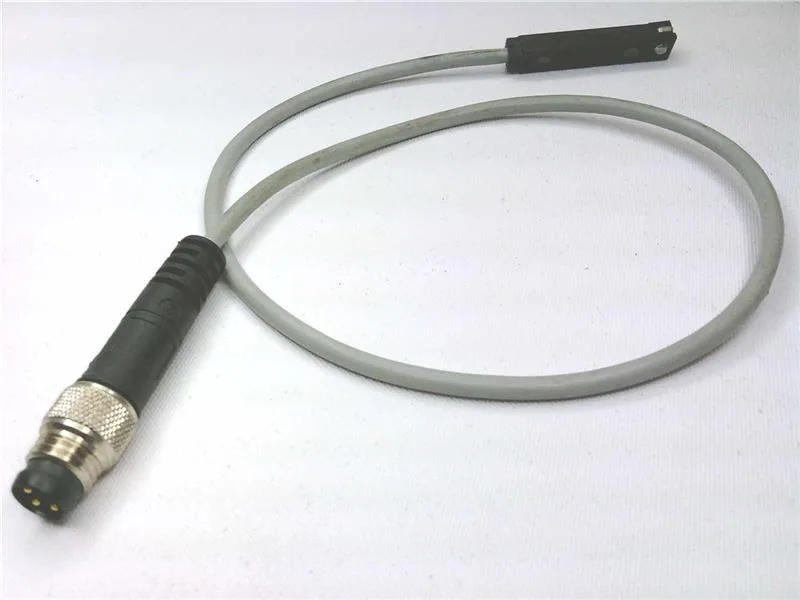

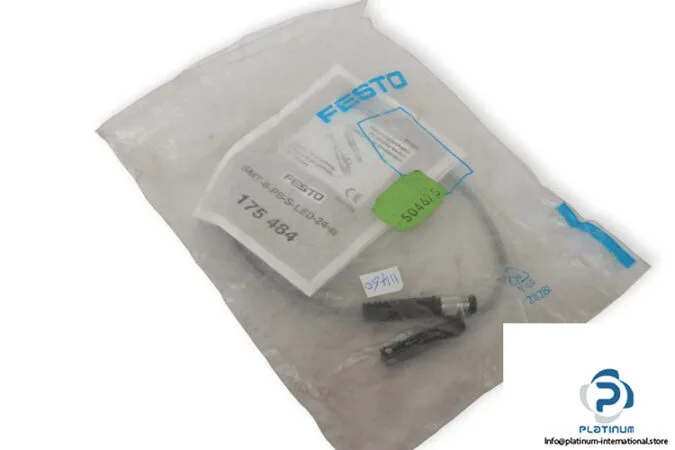

Festo SMT-8-PS-S-LED-24-B Proximity Sensor, PNP NO, 10-30 VD

MPNSMT-8-PS-S-LED-24-B

Festo SMT-8-PS-S-LED-24-B, Proximity Sensor, PNP normally open, 10-30 V DC, 500 mA switching current, IP65/IP67, PUR cable M8 3-pin.

$30.00 – $86.87Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

SMT-8-PS-S-LED-24-B — Identification
ParameterValue
TypeProximity Sensor
SMT-8-PS-S-LED-24-B — Output
ParameterValue
Switching outputNormally Open (NO)
SMT-8-PS-S-LED-24-B — Mechanical
ParameterValue
Housing materialSt
SMT-8-PS-S-LED-24-B — Other specifications
ParameterValue
ModelSMT-8-PS-S-LED-24-B
Weight0,01 kg
ConditionUsed
Shelf no.240326
Dimensions5 x 6 x 32 mm
ApplicationUsed for detecting the piston position on Cylinders with integrated sensor groove
Operating temperature-20 … 60 °C
Connector typePUR Cable M8, 3-PIN
Type of productProximity Sensor
IP ratingIP 65 / IP 67
Electrical designPNP
Operating voltage10 … 30 V DC
Switching capacity100 nF
Switching current max.500 mA

Product details

The Festo SMT-8-PS-S-LED-24-B is a PNP normally-open proximity sensor designed to detect piston position in cylinders with an integrated T-slot groove. It operates on 10-30 V DC and switches up to 500 mA, making it a standard choice for end-of-stroke sensing on pneumatic actuators.

Rated IP65/IP67, the sensor body and cable entry handle washdown environments — suitable for food-and-beverage or packaging lines where hosing down the machine is routine. The 500 mA switching current covers direct drive of small solenoids or indicator lamps without a relay interposer.

Frequently asked questions

Will SMT-8-PS-S-LED-24-B drop into a panel specified around SMT-10F-PS-24V-K0.3L-M8D without rewiring?

Both use an M8 connector, but the SMT-8-PS-S-LED-24-B has a PUR cable M8 3-pin while the SMT-10F uses a cable with M8 plug. Mechanical fit into the T-slot is the same, but verify the pinout matches your harness before swapping.

What compliance documentation does Festo provide for SMT-8-PS-S-LED-24-B?

The evidence does not list specific compliance certificates (RoHS, REACH, UL, IEC) for this order code. Standard Festo proximity sensors typically carry CE marking and are RoHS compliant, but confirm with the manufacturer for your jurisdiction.
