Festo SOOD-RS-R-PN — Photoelectric Sensors

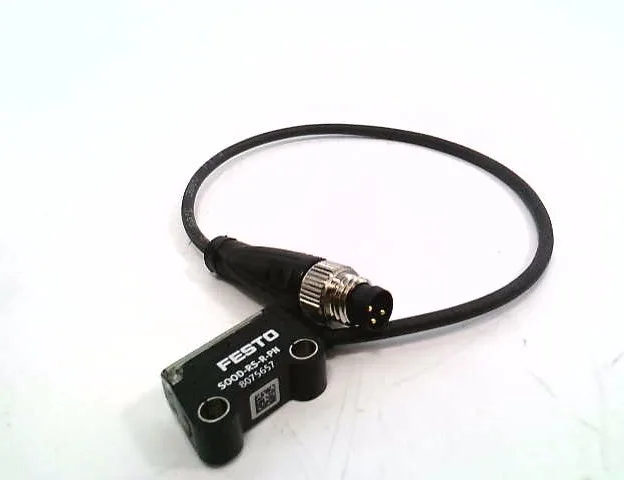

SOOD-RS-R-PN Retro-Reflective Sensor, 1 m, Push-Pull, M8

MPNSOOD-RS-R-PN

SOOD series retro-reflective optical sensor, 1 m range, push-pull output, 10–30 VDC, 50 mA load, IP65/IP67, M8 plug, 7.5 mm wide.

$111.75 – $168.26Ref. price · indicative, final on quote
Festo SOOD-RS-R-PN datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

SOOD-RS-R-PN — Identification
ParameterValue
SeriesSOOD
Sensor typeRetro-Reflective Sensor
SOOD-RS-R-PN — Sensing
ParameterValue
Sensing distance, max.1 m
Sensing distance, min.0 m
Light typeRed LED
SOOD-RS-R-PN — Electrical
ParameterValue
Operating voltage, min.10 V
Operating voltage, max.30 V
SOOD-RS-R-PN — Output
ParameterValue
Output typePush-Pull
Load current50 mA
Switching typeLight-ON;Dark ON
SOOD-RS-R-PN — Connection
ParameterValue
Termination typePlug;M8
SOOD-RS-R-PN — Environmental
ParameterValue
Protection rating (IP)IP65;IP67
Operating temperature, min.-20 °C
Operating temperature, max.60 °C
SOOD-RS-R-PN — Mechanical
ParameterValue
Length13.8 mm
Width7.5 mm
Height26 mm

Product details

The SOOD-RS-R-PN is a retro-reflective optical sensor from the SOOD series, delivering a 1 m sensing range with a red LED light source and push-pull output. It operates on 10–30 VDC and switches up to 50 mA load current, configurable for light-ON or dark-ON operation.

At 7.5 mm wide, this sensor packs tightly on a DIN rail — useful when multiple sensors share a small enclosure. The M8 plug termination keeps wiring clean and reduces panel build time compared to flying leads. IP65/IP67 protection means it handles washdown and dust ingress, so it fits on packaging lines or conveyor stations where occasional hose-down is routine.

This part carries a current lifecycle stage, so it remains a qualified line item for serial production. No last-time-buy or phase-out notice applies.

Frequently asked questions

What is the closest functional second-source to SOOD-RS-R-PN?

The SOOE-RG-R-PNLK-T is a retro-reflective sensor with push-pull output and M8 plug, but it is wider (11 mm vs 7.5 mm), taller (44.5 mm vs 26 mm), and offers a 3.5 m range with IP69K rating. It will not drop into the same footprint without panel rework.

What are the key dimensions of SOOD-RS-R-PN?

Width 7.5 mm, height 26 mm, length 13.8 mm.

Will SOOD-RS-R-PN drop into a panel specified around SOOE-RG-R-PNLK-T without rewiring?

No — the SOOE-RG-R-PNLK-T is 11 mm wide and 44.5 mm high, so the mounting cutout and DIN-rail space differ. The M8 plug is the same, but the larger housing requires panel rework.
