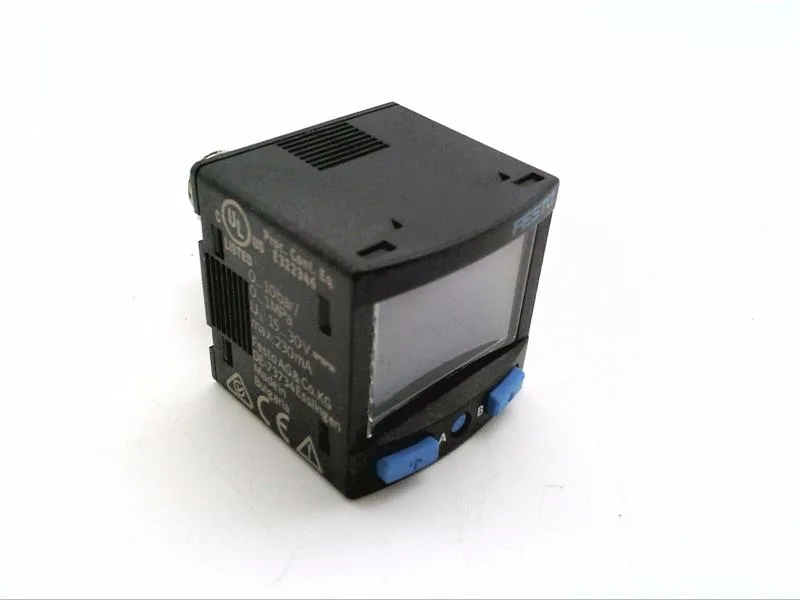

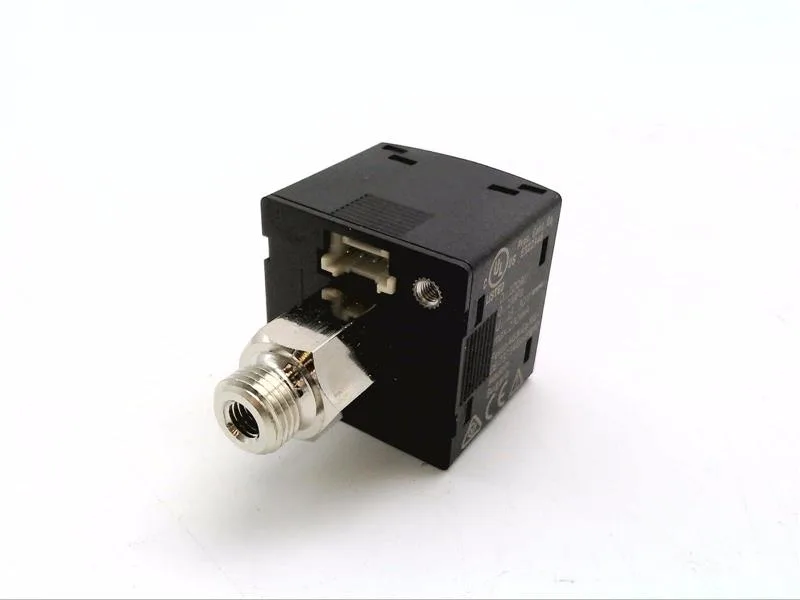

Festo SPAN-P10R-G18M-PN-PN-L1 Pressure Sensor
MPNSPAN-P10R-G18M-PN-PN-L1
Piezoresistive Pressure Sensor, G1/8", M5, 0... 10 bar, IP40
$75.21 – $117.90Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Sensor type | Pressure Sensor |
Pressure
| Parameter | Value |
|---|---|
| Pressure measurement range | 0 ... 10 bar |
Electrical
| Parameter | Value |
|---|---|
| Load current | 100 mA |
Mechanical & Connection
| Parameter | Value |
|---|---|
| Pressure connection (port) | G1/8" Outside Thread and M5 Inside Thread |
| Electrical connection | Plug |
| Dimensions (W x H x D) | 30 x 30 x 48 mm |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature range | 0 ... 50 °C |
| Ingress protection (IP) rating | IP 40 |
MPN
SPAN-P10R-G18M-PN-PN-L1
