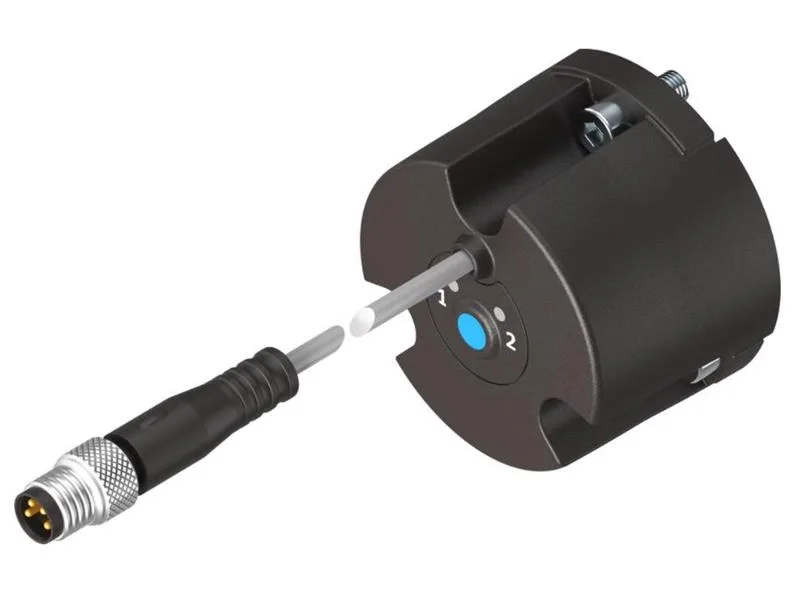

The SRBS-Q1-10-E270-EP-1-S-M8 is an angular Hall effect position sensor built for DSM Size 10 rotary drives. It reads a 270° electrical angle and reports position through a 50 mA output, powered from 10 to 30 VDC. The screw-mount body and M8 plug-in termination make it a field-swappable unit — no soldering, no potting, just pull the old one and torque the new one in.
The 270° electrical angle matches the full rotation range of the DSM Size 10 actuator — you get a continuous position signal across the entire stroke, not a dead zone at the ends. IP65 and IP68 together mean the sensor body and the M8 connector survive washdown and temporary submersion; this is the rating that keeps a sensor alive on a packaging line or a washdown conveyor where hoses hit it daily. The 300 mm cable is pre-wired to the M8 plug, so the connector sits at the sensor and you run your own extension from there — no need to splice into the sensor itself.
The screw mount and M8 plug make this a candidate for any panel or machine frame where a DSM Size 10 rotary drive is installed — think valve actuators, rotary indexing tables, or pick-and-place axes. The IP65/IP68 rating means it handles the washdown zone without needing an extra cover boot. The 10-30 V supply range works on standard 24 VDC control power without a regulator.
