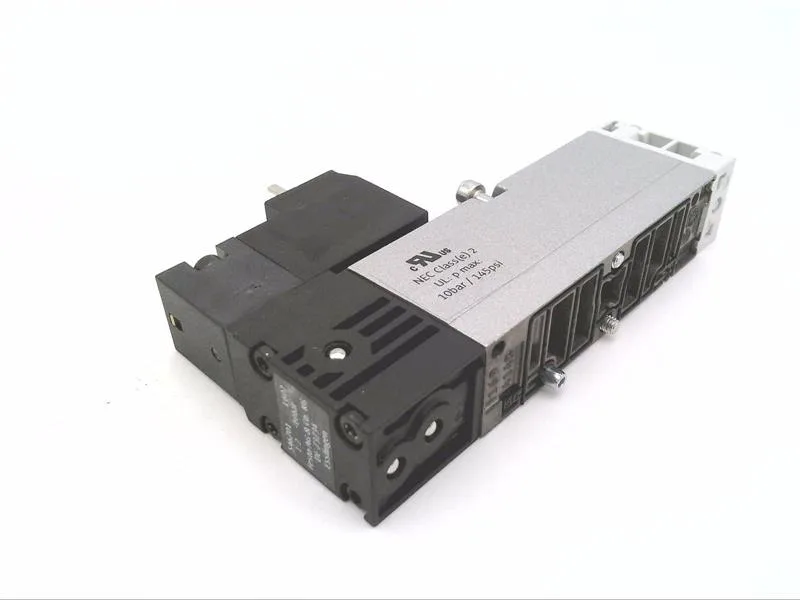

Festo VSVA-B-M52-AH-A2-1C1 — Solenoid & Directional Valves

Festo VSVA-B-M52-AH-A2-1C1

MPNVSVA-B-M52-AH-A2-1C1

Solenoid Operated Valve 5/2 1MPa Air

$112.71 – $161.33Ref. price · indicative, final on quote
Festo VSVA-B-M52-AH-A2-1C1 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

VSVA-B-M52-AH-A2-1C1 — Valve Function
ParameterValue
Valve configuration (ways/positions)5/2
VSVA-B-M52-AH-A2-1C1 — Identification
ParameterValue
SeriesVSVA
VSVA-B-M52-AH-A2-1C1 — Electrical
ParameterValue
Rated voltage24 VDC
Rated power1.8 W
Electrical terminationType C Plug
VSVA-B-M52-AH-A2-1C1 — Media & Pressure
ParameterValue
Media type (alt.)Air
Operating pressure, min.200 kPa
Operating pressure, max.1 MPa
VSVA-B-M52-AH-A2-1C1 — Mechanical
ParameterValue
Housing materialDie-Cast Aluminium
Length138 mm
Height58 mm
Width42 mm
VSVA-B-M52-AH-A2-1C1 — Environmental
ParameterValue
Protection rating (IP, alt.)IP65
MPN
VSVA-B-M52-AH-A2-1C1
