Festo VUVG-BK14-T32C-AT-F-1H2L-S — Solenoid & Directional Valves

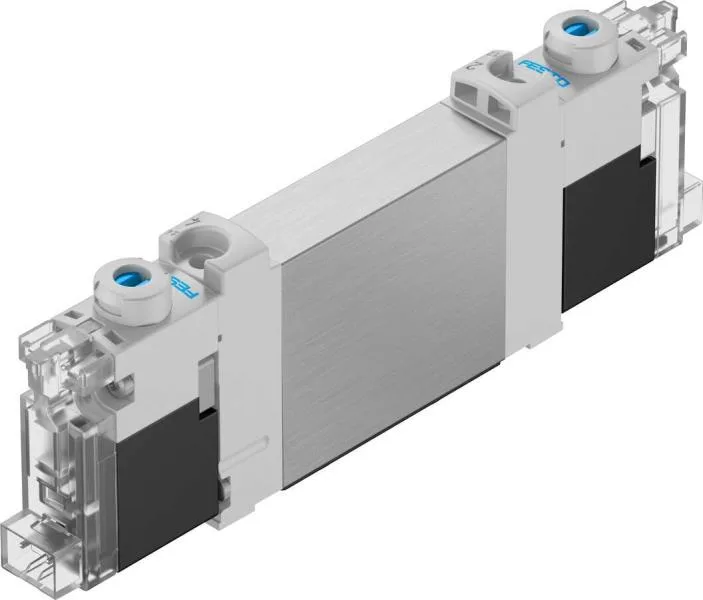

Festo VUVG-BK14-T32C-AT-F-1H2L-S

MPNVUVG-BK14-T32C-AT-F-1H2L-S
Active

Solenoid Operated Valve 3/2 Flange 700kPa Air

$78.75 – $100.86Ref. price · indicative, final on quote
Festo VUVG-BK14-T32C-AT-F-1H2L-S datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

VUVG-BK14-T32C-AT-F-1H2L-S — Valve Function
ParameterValue
Valve function2 x 3/2 Normally Closed
TypeSolenoid Valve
VUVG-BK14-T32C-AT-F-1H2L-S — Identification
ParameterValue
SeriesVUVG
VUVG-BK14-T32C-AT-F-1H2L-S — Ports & Connection
ParameterValue
Connection methodThreaded
Mounting typeChassis Mount
VUVG-BK14-T32C-AT-F-1H2L-S — Electrical
ParameterValue
FeaturesSupply Voltage 24VDC
VUVG-BK14-T32C-AT-F-1H2L-S — Media & Pressure
ParameterValue
Fluid / media typeAir
Operating pressure range22 ~ 102 PSI (1.5 ~ 7 bar)
VUVG-BK14-T32C-AT-F-1H2L-S — Environmental
ParameterValue
Ingress protection (IP rating)IP40
Operating temperature range-5°C ~ 50°C
VUVG-BK14-T32C-AT-F-1H2L-S — Approvals
ParameterValue
Approvals / certificationscULus
MPN
VUVG-BK14-T32C-AT-F-1H2L-S
