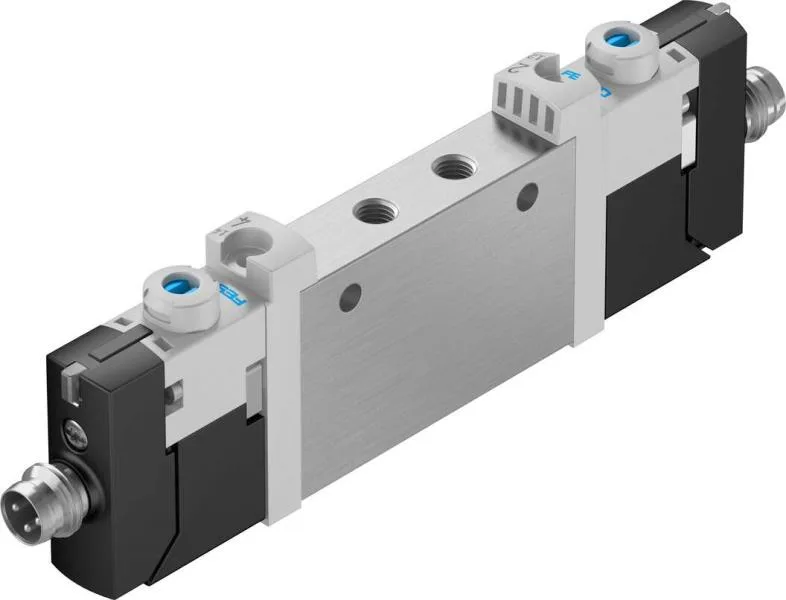

Festo VUVG-L10-T32C-AT-M5-1R8L — Solenoid & Directional Valves

Festo VUVG-L10-T32C-AT-M5-1R8L

MPNVUVG-L10-T32C-AT-M5-1R8L
Active

Solenoid Operated Valve 3/2 M5 800kPa Air

$117.01 – $138.74Ref. price · indicative, final on quote
Festo VUVG-L10-T32C-AT-M5-1R8L datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026

Specifications

VUVG-L10-T32C-AT-M5-1R8L — Valve Function
ParameterValue
Valve function2 x 3/2 Normally Closed
TypeSolenoid Valve
VUVG-L10-T32C-AT-M5-1R8L — Identification
ParameterValue
SeriesVUVG
VUVG-L10-T32C-AT-M5-1R8L — Ports & Connection
ParameterValue
Connection methodThreaded M5
Mounting typeChassis Mount
VUVG-L10-T32C-AT-M5-1R8L — Electrical
ParameterValue
FeaturesSupply Voltage 24VDC
VUVG-L10-T32C-AT-M5-1R8L — Media & Pressure
ParameterValue
Fluid / media typeAir
Operating pressure range22 ~ 116 PSI (1.5 ~ 8 bar)
VUVG-L10-T32C-AT-M5-1R8L — Environmental
ParameterValue
Ingress protection (IP rating)IP65 - Dust Tight, Water Resistant
Operating temperature range-5°C ~ 60°C
VUVG-L10-T32C-AT-M5-1R8L — Approvals
ParameterValue
Approvals / certificationscULus
MPN
VUVG-L10-T32C-AT-M5-1R8L
