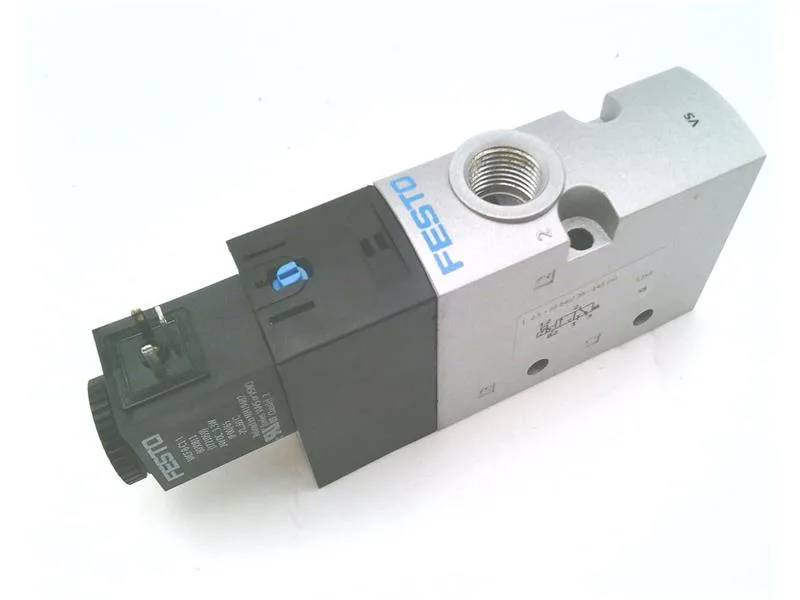

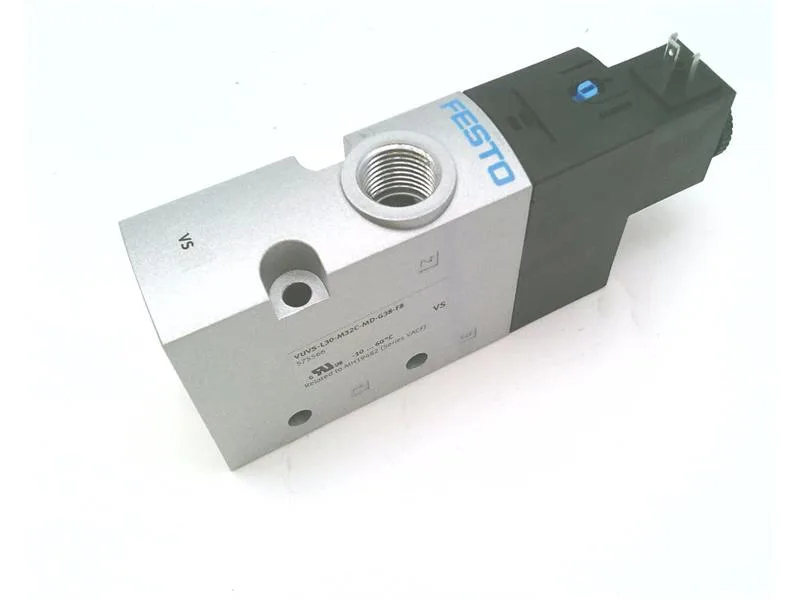

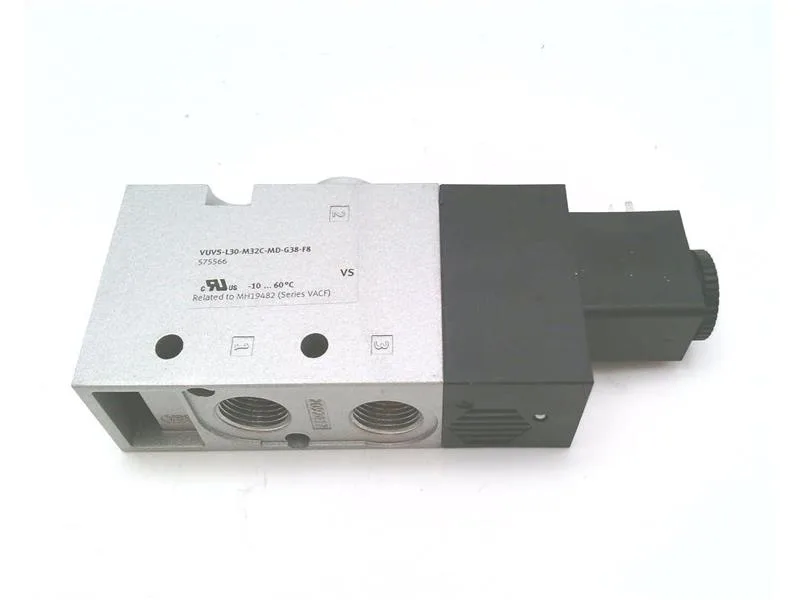

Festo VUVS-L30-M32C-MD-G38-F8-1C1
MPNVUVS-L30-M32C-MD-G38-F8-1C1
Solenoid Operated Valve 3/2 G3/8" 1MPa Air
$104.05 – $112.48Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Valve configuration (ways/positions) | 3/2 |
| Parameter | Value |
|---|---|
| Series | VUVS |
| Parameter | Value |
|---|---|
| Rated voltage | 24 VDC |
| Rated power | 3.3 W |
| Electrical termination | Type C Plug |
| Parameter | Value |
|---|---|
| Connection size | G3/8" |
| Parameter | Value |
|---|---|
| Media type (alt.) | Air |
| Operating pressure, min. | 250 kPa |
| Operating pressure, max. | 1 MPa |
| Parameter | Value |
|---|---|
| Housing material | Die-Cast Aluminium |
| Length | 145 mm |
| Height | 57 mm |
| Width | 31 mm |
| Parameter | Value |
|---|---|
| Protection rating (IP, alt.) | IP65 |
MPN
VUVS-L30-M32C-MD-G38-F8-1C1
