Fuji Electric VFZ801A-7W

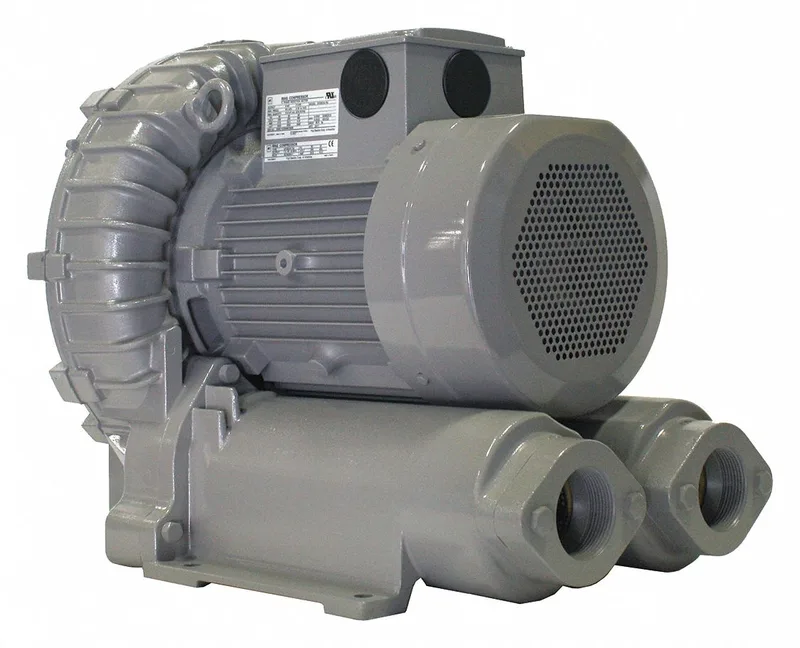

FUJI ELECTRIC VFZ801A-7W Ring Compressor, 10.7 hp, 230/460V

MPN VFZ801A-7W

FUJI ELECTRIC, Ring Compressor / Regenerative Blower, VFZ801A-7W, 10.7 hp, Three Phase, 230/460V AC, 60 Hz, 379 cfm, 112 in wc vacuum.

$3,655.98 – $5,270.02 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

VFZ801A-7W specifications
ParameterValue
Inlet typeNPT
Outlet typeNPT
Enclosure typeTotally Enclosed Fan-Cooled
Voltage230/460 V AC
Current27.8/12.6 A
Output power10.7 hp
Frequency60 Hz
IP ratingNEMA Premium IE3
Weight211 lb
Housing materialAluminum
Thermal protectionPilot Duty
Operating pressure max134.6 in wc

Product details

The FUJI ELECTRIC VFZ801A-7W is a three-phase ring compressor — a regenerative blower rated for 10.7 hp output, delivering up to 379 cfm at a maximum vacuum of 112 in wc and a maximum operating pressure of 134.6 in wc. It draws 27.8 A on a 230V supply and 12.6 A on a 460V supply, both at 60 Hz. The 2-1/2 in NPT female inlet and outlet ports match standard process piping for pneumatic conveying, aeration, or vacuum hold-down systems.

Performance and application fit

The 10.7 hp motor drives a cast-aluminum impeller inside a Totally Enclosed Fan-Cooled (TEFC) enclosure rated NEMA Premium IE3 — the efficiency tier that meets current US energy regulations for continuous-duty industrial blowers. The 379 cfm flow and 112 in wc vacuum make it sized for central vacuum systems, pneumatic conveying lines, or wastewater aeration where a single blower serves multiple pick-up points. Maximum ambient temperature is 104 °F; the air temperature rise under load hits 143 °F, so ducting or intake filtration should account for that heat rejection. Pilot-duty thermal protection is built in — it trips a control circuit rather than interrupting the motor directly, which suits remote monitoring or PLC-based restart logic.

MPN
VFZ801A-7W
