Honeywell 4TL1-3
MPN4TL1-3

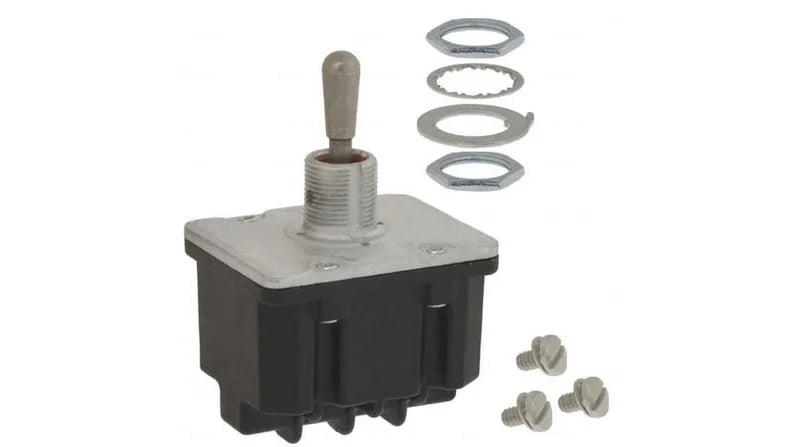

HONEYWELL Toggle Switch: 2 Position, 12 Connections, 4PDT, Screw Terminals Connection, TL Series
$100.23 – $117.70Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Series | TL |
| Base type | Step |
| Product type | Toggle Switch |
| Terminal connection type | Screw Terminals |
| Horsepower | 1 hp @ 250V AC; 1/2 hp @ 125V AC |
| Contact form | 4PDT |
| Poles | 4 |
| IP rating | IP67 |
| Panel mounting hole diameter | 0.47 in |
| Number of connections | 12 |
| Operating temperature - maximum | 160 °F |
| Operating temperature - minimum | -85 °F |
All specifications
| Parameter | Value |
|---|---|
| Overall depth | 1.13 in |
| Overall width | 1.64 in |
| Overall height | 2.49 in |
| Actuator material | Metal |
| Standards | CE; CSA; MIL-DTL-3950; UL Listed |
| Brand | HONEYWELL |
| Includes | Bushing; Case; Cover; Toggle Lever |
| Stem length | 0.47 in |
| Stem diameter | 0.47 in |
| Actuator length | 0.67 in |
| Stem thread size | 15/32-32 UNS-2A |
| AC contact rating | 15 A @ 125 V15 A @ 250 V |
| DC contact rating | 20 A @ 28 V |
| Positions | 2 |
| Metal actuator finish | Silver |
| Resistance properties | Shock Resistant; Vibration Resistant |
| Operator illumination style | Non-Illuminated |
| Switch function configuration | On/On |
MPN
4TL1-3
