Littelfuse 201-100-SP-DPDT — Relay Sockets

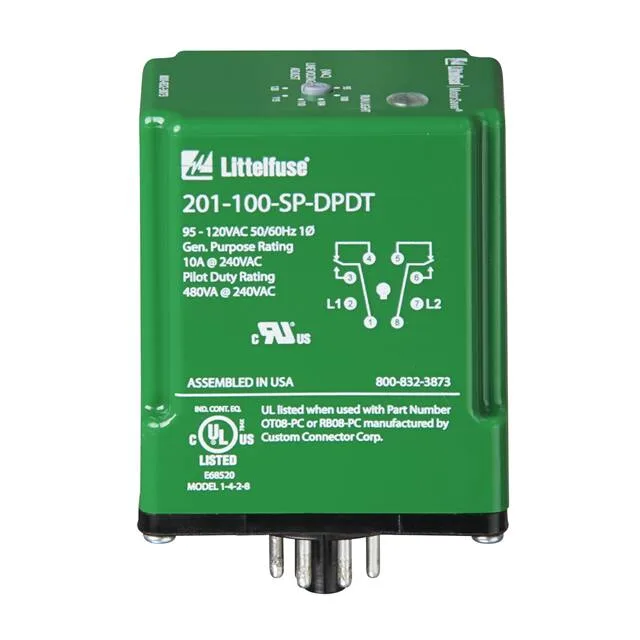

Littelfuse 201-100-SP-DPDT

MPN201-100-SP-DPDT
Active

Littelfuse LLC14B15AX Level Control

$108.59 – $178.59Ref. price · indicative, final on quote
Littelfuse 201-100-SP-DPDT datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

201-100-SP-DPDT — Identification
ParameterValue
Series201-XXX-SP
201-100-SP-DPDT — Function & Sensing
ParameterValue
TypeVoltage Sensing AC
Trip range95 ~ 120V AC
Trip statusEnergized Low
201-100-SP-DPDT — Contacts & Switching
ParameterValue
Contact configurationSPDT (1 Form C)
Contact rating10A @ 240VAC
Output typeRelay
201-100-SP-DPDT — Coil / Input
ParameterValue
Supply voltage95 ~ 120VAC
201-100-SP-DPDT — Timing & Performance
ParameterValue
Delay timeFixed, 4 Sec
201-100-SP-DPDT — Mechanical & Mounting
ParameterValue
Mounting typeSocketable
201-100-SP-DPDT — Environmental & Durability
ParameterValue
Operating temperature range-40°C ~ 70°C
MPN
201-100-SP-DPDT
