Littelfuse HRDB117S — Time Delay Relays

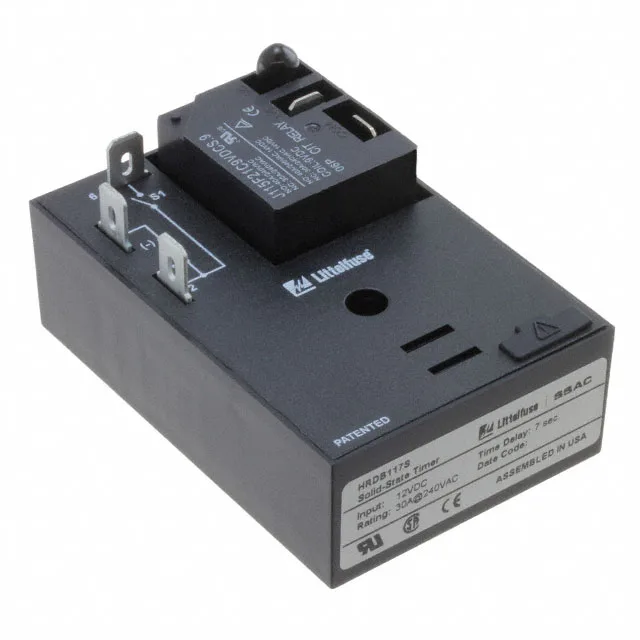

Littelfuse HRDB117S

MPNHRDB117S
Active

RELAY TIME DELAY 7SEC 30A 125V

$82.87Ref. price · indicative, final on quote
Littelfuse HRDB117S datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026

Specifications

HRDB117S — Identification
ParameterValue
Relay typeMechanical Relay
SeriesHRDB
HRDB117S — Timing
ParameterValue
FunctionOff-Delay
Delay time rangeFixed, 7 Sec
Timing adjustment methodFixed
Timing initiate methodInput Voltage, Trigger Signal
HRDB117S — Electrical
ParameterValue
Supply voltage12VDC
HRDB117S — Output / Contacts
ParameterValue
Contact rating30A @ 125/240VAC
Contact configurationSPDT (1 Form C)
HRDB117S — Mechanical
ParameterValue
Termination styleQuick Connect - 0.250" (6.3mm)
Mounting typeChassis Mount
MPN
HRDB117S
