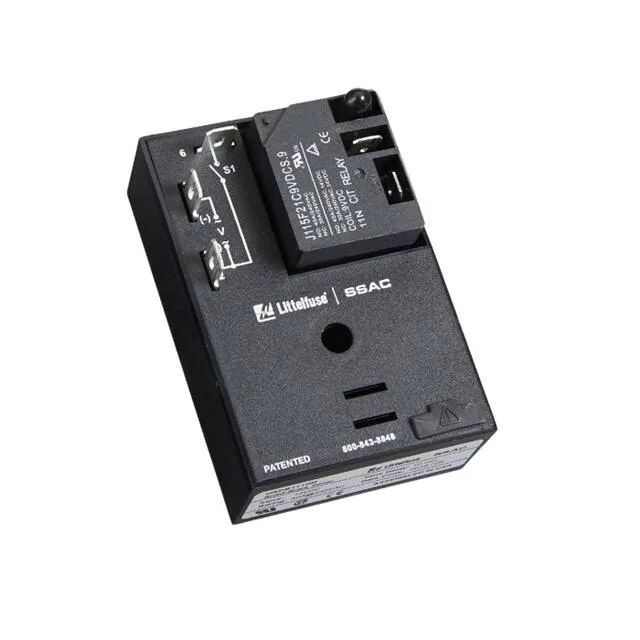

Littelfuse HRDB124 — Time Delay Relays

Littelfuse HRDB124

MPNHRDB124
Active

RELAY TIME DELAY 100MIN 30A 125V

$72.04 – $96.05Ref. price · indicative, final on quote
Littelfuse HRDB124 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026

Specifications

HRDB124 — Identification
ParameterValue
Relay typeMechanical Relay
SeriesHRDB
HRDB124 — Timing
ParameterValue
FunctionOff-Delay
Delay time range1 Min ~ 100 Min
Timing adjustment methodScrewdriver Slot
Timing initiate methodInput Voltage, Trigger Signal
HRDB124 — Electrical
ParameterValue
Supply voltage12VDC
HRDB124 — Output / Contacts
ParameterValue
Contact rating30A @ 125/240VAC
Contact configurationSPDT (1 Form C)
HRDB124 — Mechanical
ParameterValue
Termination styleQuick Connect - 0.250" (6.3mm)
Mounting typeChassis Mount
MPN
HRDB124
