Littelfuse KRDB1120M — Time Delay Relays

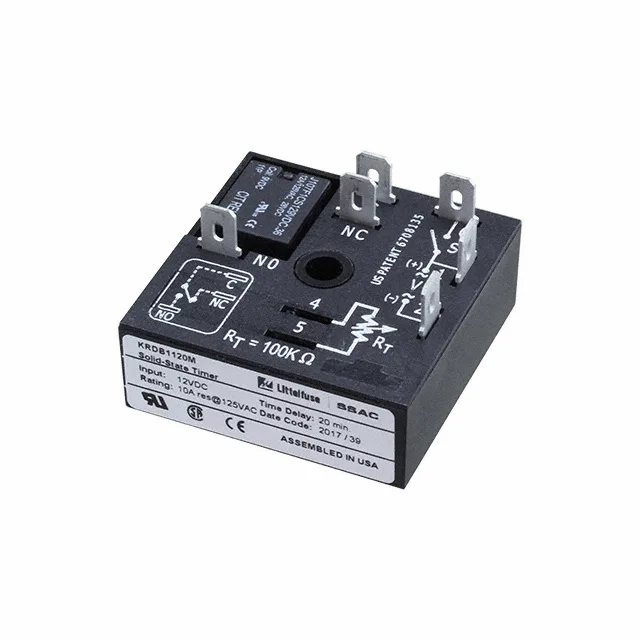

Littelfuse KRDB1120M

MPNKRDB1120M
Active

RELAY TIME DELAY 20MIN 10A 125V

$75.59Ref. price · indicative, final on quote
Littelfuse KRDB1120M datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026

Specifications

KRDB1120M — Identification
ParameterValue
Relay typeMechanical Relay
SeriesKRDB
KRDB1120M — Timing
ParameterValue
FunctionOff-Delay
Delay time rangeFixed, 20 Min
Timing adjustment methodFixed
Timing initiate methodInput Voltage, Trigger Signal
KRDB1120M — Electrical
ParameterValue
Supply voltage12VDC
KRDB1120M — Output / Contacts
ParameterValue
Contact rating10A @ 125VAC
Contact configurationSPDT (1 Form C)
KRDB1120M — Mechanical
ParameterValue
Termination styleQuick Connect - 0.250" (6.3mm)
Mounting typeChassis Mount
MPN
KRDB1120M
