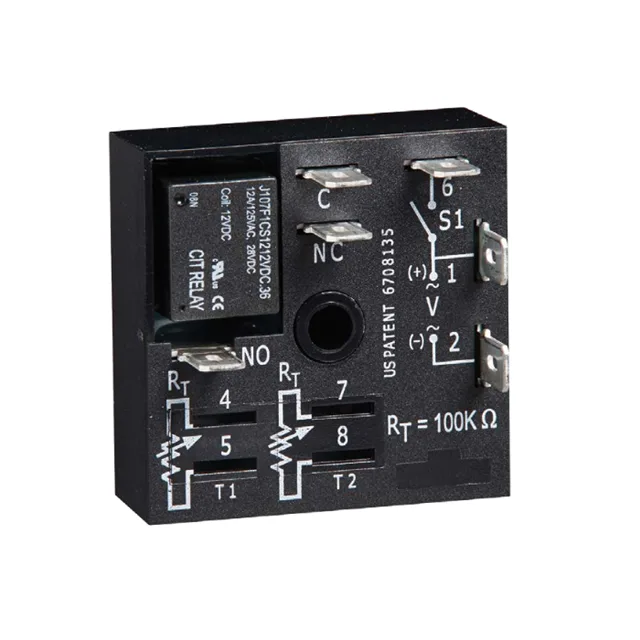

Littelfuse KRPD215S190SMB — Time Delay Relays

Littelfuse KRPD215S190SMB

MPNKRPD215S190SMB
Active

RELAY TIME DEL 5SEC 90S 10A 125V

$107.01Ref. price · indicative, final on quote
Littelfuse KRPD215S190SMB datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

KRPD215S190SMB — Identification
ParameterValue
Relay typeMechanical Relay
SeriesKRPD
KRPD215S190SMB — Timing
ParameterValue
FunctionOff-Delay, On-Delay
Delay time rangeFixed, 5 Sec, 90 Sec
Timing adjustment methodFixed
Timing initiate methodInput Voltage, Trigger Signal
KRPD215S190SMB — Electrical
ParameterValue
Supply voltage24VAC
KRPD215S190SMB — Output / Contacts
ParameterValue
Contact rating10A @ 125VAC
Contact configurationSPDT (1 Form C)
KRPD215S190SMB — Mechanical
ParameterValue
Termination styleQuick Connect - 0.250" (6.3mm)
Mounting typeChassis Mount
MPN
KRPD215S190SMB
